MAKINO V55
Type:
Vertical Machining Centers
Manufacturer:
MAKINO
Model:
V55
Condition:
Not Specified
Year:
2000
Stock #:
22218
Status:
Sold
Description:
35.5"x19.7"x17.7"
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

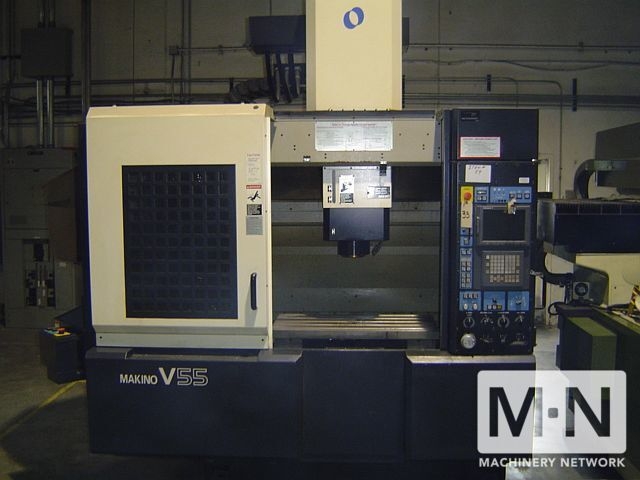

(1) USED MAKINO V55 CNC VERTICAL DIE MOLD MILLING & MACHINING CENTER - NEW 2000
SPECIFICATIONS:
TABLE DIMENSIONS: 39.4" x 19.7"
TRAVELS - X AXIS: 35.4"
- Y AXIS: 19.7"
- Z AXIS: 17.7"

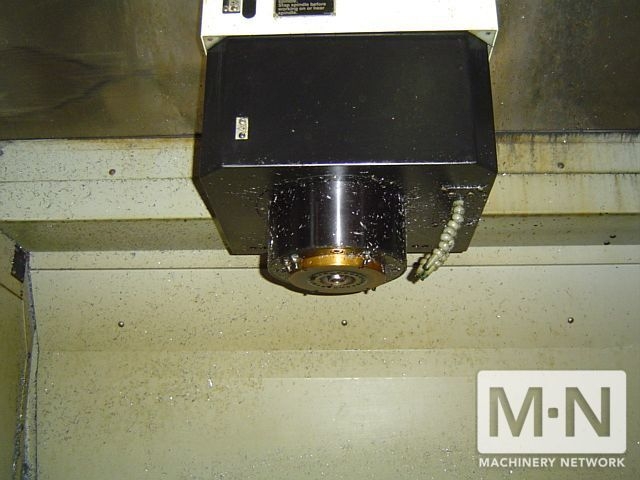

SPINDLE SPEED: 20,000 RPM
SPINDLE MOTOR: 30 HP
SPINDLE TAPER: HSK-A63
RAPID TRAVERSE: 1,969 IPM
CUTTING FEEDRATE: 1,968 IPM
MAX. WORKPIECE DIMS: 39.3" x 24.8" x 17.7"
MAX. PAYLOAD: 1,540 lbs

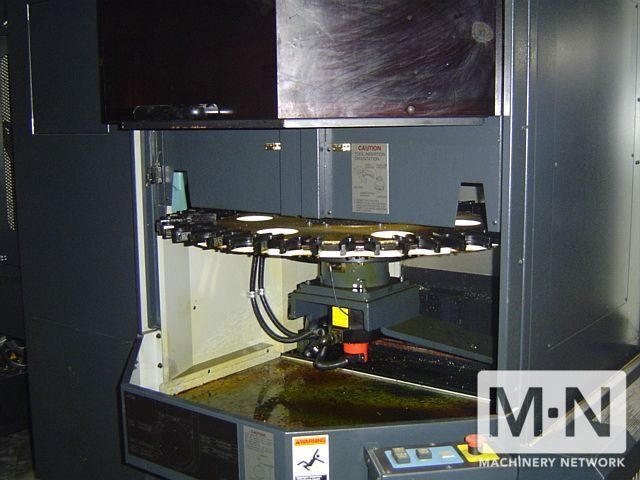

ATC CAPACITY: 25
TOOL TO TOOL: 1.5 secs
CHIP TO CHIP: 3.9 secs
APPROX. DIMENSIONS: 124"x110"x118"H
APPROX WEIGHT: 21,000 LBS
EQUIPPED:

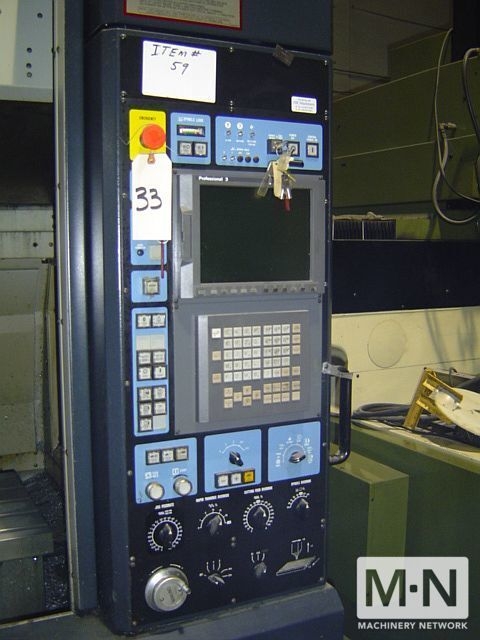

-MAKINO PROFESSIONAL 3 CNC CONTROL
-SUPER GEOMETRIC INTELLIGENCE (SGI) SERVO CONTROL SOFTWARE FOR ADDED ACCURACY DURING HIGH SPEED MILLING
-NURBS & DIE MOLD PACKAGE
-COOLANT THRU SPINDLE
-COMPRESSED AIR DRYER
-TRANSFORMER
-DAIKIN OIL COOLING UNIT
-DAIKIN INVERTER
-CHIP CONVEYOR W/COOLANT FILTER
SPECIFICATIONS:
TABLE DIMENSIONS: 39.4" x 19.7"
TRAVELS - X AXIS: 35.4"
- Y AXIS: 19.7"
- Z AXIS: 17.7"
SPINDLE SPEED: 20,000 RPM
SPINDLE MOTOR: 30 HP
SPINDLE TAPER: HSK-A63
RAPID TRAVERSE: 1,969 IPM
CUTTING FEEDRATE: 1,968 IPM
MAX. WORKPIECE DIMS: 39.3" x 24.8" x 17.7"
MAX. PAYLOAD: 1,540 lbs
ATC CAPACITY: 25
TOOL TO TOOL: 1.5 secs
CHIP TO CHIP: 3.9 secs
APPROX. DIMENSIONS: 124"x110"x118"H
APPROX WEIGHT: 21,000 LBS
EQUIPPED:
-MAKINO PROFESSIONAL 3 CNC CONTROL
-SUPER GEOMETRIC INTELLIGENCE (SGI) SERVO CONTROL SOFTWARE FOR ADDED ACCURACY DURING HIGH SPEED MILLING
-NURBS & DIE MOLD PACKAGE
-COOLANT THRU SPINDLE
-COMPRESSED AIR DRYER
-TRANSFORMER
-DAIKIN OIL COOLING UNIT
-DAIKIN INVERTER
-CHIP CONVEYOR W/COOLANT FILTER
