WIEDEMANN MOTORUM M2048 LT
Type:
PUNCHES, TURRET, N/C & CNC
Manufacturer:
WIEDEMANN
Model:
MOTORUM M2048 LT
Condition:
Not Specified
Year:
2005
Stock #:
24864
Status:
Sold
Description:
22 TONS, 54 STNS. 2 A.I., BRUSH TABLE, FANUC CNC, TOOLING
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

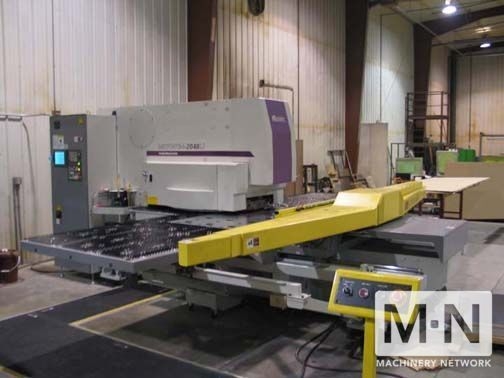

22 TON MURATA MOTORUM 2048LT CNC TURRET PUNCH
NEW 2005
TONNAGE 22 TONS
NUMBER OF STATIONS 54 W/2 AUTO INDEX
MAX. HOLE DIAMETER 4.75"
THROAT DEPTH 53"
TABLE TRAVEL 100" X 63"
TABLE SPEED (X,Y,DIAGONAL) X = 3,700 IPM
Y = 2,953 IPM
D = 4,724 IPM
MAX. MATERIAL THICKNESS .25"
MAX. WORKPIECE WEIGHT 330 LBS
ACCURACY ON 1" CC +/- .004"
EQUIPPED WITH:
54 STATIONS WITH 2 AUTO INDEX
BRUSH TABLE
3 HYDRAULIC CLAMPS
FANUC 18i CNC CONTROLS
PREPPED FOR LOAD/UNLOAD
THIS MACHINE WAS INSTALLED 11/05
FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
NEW 2005
TONNAGE 22 TONS
NUMBER OF STATIONS 54 W/2 AUTO INDEX
MAX. HOLE DIAMETER 4.75"
THROAT DEPTH 53"
TABLE TRAVEL 100" X 63"
TABLE SPEED (X,Y,DIAGONAL) X = 3,700 IPM
Y = 2,953 IPM
D = 4,724 IPM
MAX. MATERIAL THICKNESS .25"
MAX. WORKPIECE WEIGHT 330 LBS
ACCURACY ON 1" CC +/- .004"
EQUIPPED WITH:
54 STATIONS WITH 2 AUTO INDEX
BRUSH TABLE
3 HYDRAULIC CLAMPS
FANUC 18i CNC CONTROLS
PREPPED FOR LOAD/UNLOAD
THIS MACHINE WAS INSTALLED 11/05
FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
