NICCO NSG-6H
Type:
GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)
Manufacturer:
NICCO
Model:
NSG-6H
Condition:
Not Specified
Stock #:
25083
Status:
Sold
Description:
12"X24", EM CHUCK, OTW DRESS
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

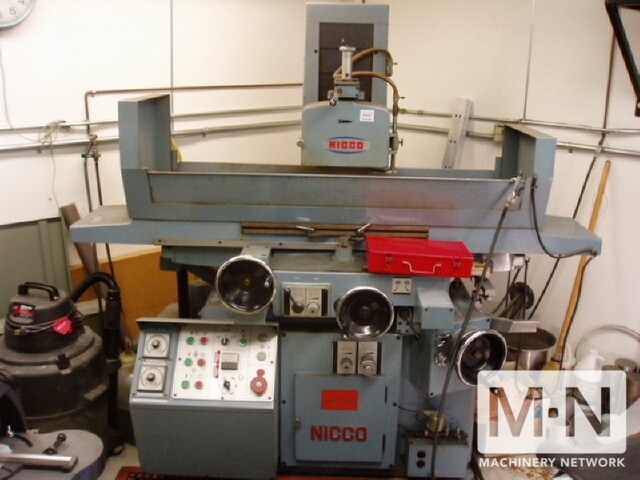

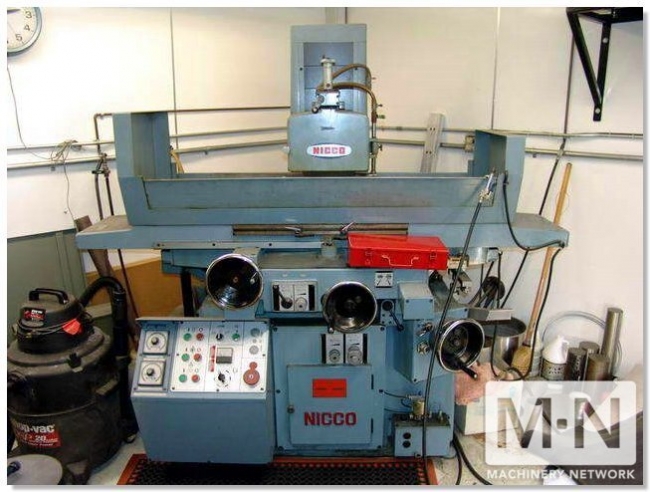

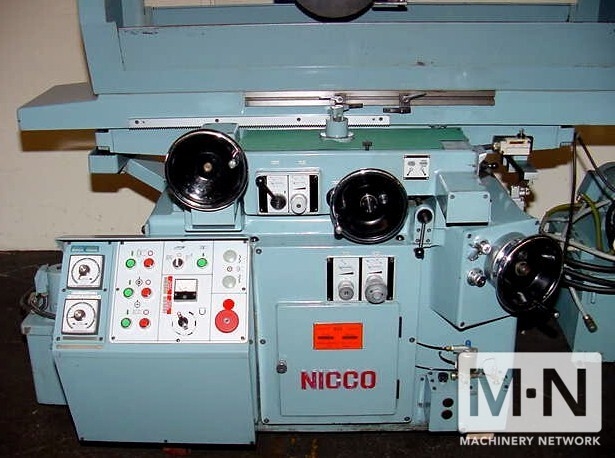

(1) USED 12"x24" NICCO MODEL NSG-6H PRECISION HORIZONTAL SPINDLE SURFACE GRINDER, S/N: B4105, NEW 1984
SPECIFICATIONS:
WIDTH & LENGTH GROUND................... 12" X 24" LONGITUDINAL TABLE TRAVEL............... 27" CROSSFEED TRAVEL........................ 13" SPINDLE CENTER TO TABLE TOP............. 20" MAX.
VERTICAL TRAVEL OF SPINDLE ............. 16" LONGITUDINAL TABLE SPEEDS............... 3-82 FPM
AUTO CROSSFEED PER TABLE REVERSAL....... 0.12" TO 0.8" CONTINUOUS CROSSFEED SPEEDS............. 6.6-16' FPM MNL CROSSFEED PER DIV. ON HANDWHEEL..... 0.0005" GRINDING WHEEL SIZE .................... 12" X 1.5" X 3" RAPID TRAVERSE RATE..................... 14" IPM
MNL VERT. FEED PER DIV.ON HANDWHEEL.... 0.0001"
AUTOMATIC INCREMENTAL DOWNFEED.......... 0.0001" TO .0016"
APPROX. MACHINE WEIGHT.................. 4,800 LBS.
MACHINE DIMENSIONS ..................... 81" X 60" X 74"
EQUIPPED WITH: -AUTOMATIC INCREMENTAL DOWNFEED FOR PLUNGE & SURFACE GRINDING WITH "DEEP CUTTING" (1 TO 30 PASSES) FEATURE - DOWNFEED WILL ALLOW MORE THAN ONE PASS & UP TO 30 OF THE DOWNFEED HANDWHEEL (ONE REV. OF HANDWHEEL IS .04")
-SPARKOUT CONTROL (1 TO 30 PASSES)
-TABLE PARKS TO THE SIDE @ COMPLETION OF GRIND CYCLE -POWER RAPID WHEELHEAD POSITIONING -HYDRAULIC LONGITUDINAL & CROSS FEEDS
-POWER RAPID CROSSFEED

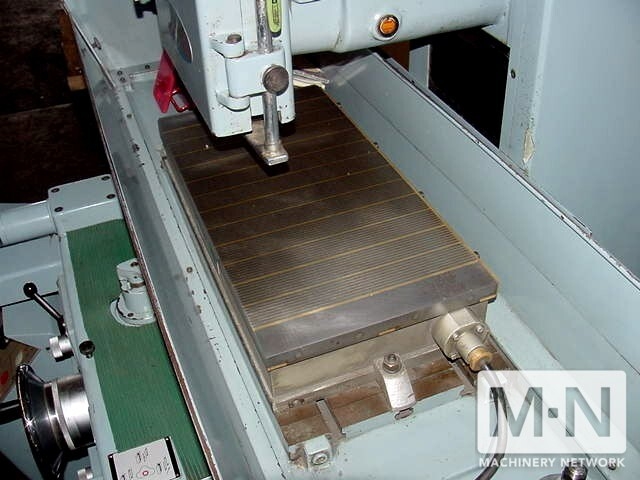

-12" X 24" ELECTRO-MAGNETIC CHUCK W/VARIABLE HOLD NEUTROFIER CONTROL.
-AUTOMATIC LUBRICATION FOR WAYS & SCREWS -EXTERNAL HYDRAULIC POWER UNIT -COOLANT SYSTEM

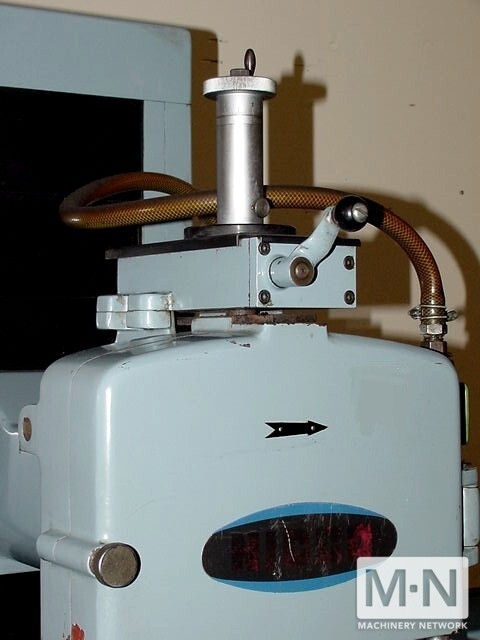

-MANUAL "OVER-THE-WHEEL" DRESSER

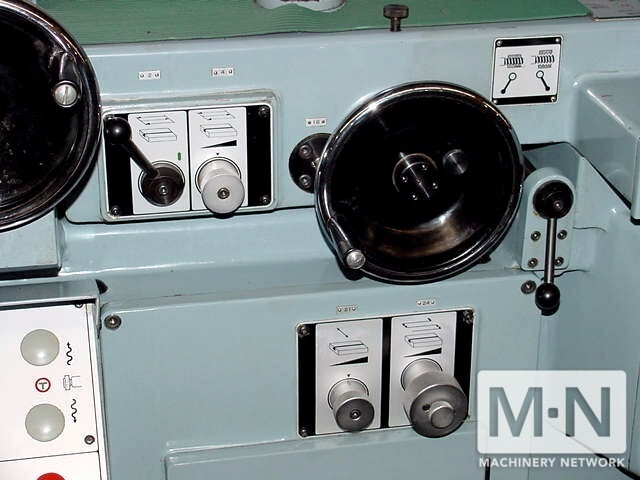

-ALL (3) HANDWHEELS @ OPERATOR'S HIP LEVEL
-FINE DOWNFEED BY RATCHET MECHANISM (.0001" GRAD.)
-EXTERNAL HYDRAULIC SYSTEM, 2 H.P. MOTOR
-5 H.P./3/60/220-440 VOLT SPINDLE MOTOR
-MACHINE IS PRESENTLY WIRED FOR 220 VOLTS
SPECIFICATIONS:
WIDTH & LENGTH GROUND................... 12" X 24" LONGITUDINAL TABLE TRAVEL............... 27" CROSSFEED TRAVEL........................ 13" SPINDLE CENTER TO TABLE TOP............. 20" MAX.
VERTICAL TRAVEL OF SPINDLE ............. 16" LONGITUDINAL TABLE SPEEDS............... 3-82 FPM
AUTO CROSSFEED PER TABLE REVERSAL....... 0.12" TO 0.8" CONTINUOUS CROSSFEED SPEEDS............. 6.6-16' FPM MNL CROSSFEED PER DIV. ON HANDWHEEL..... 0.0005" GRINDING WHEEL SIZE .................... 12" X 1.5" X 3" RAPID TRAVERSE RATE..................... 14" IPM
MNL VERT. FEED PER DIV.ON HANDWHEEL.... 0.0001"
AUTOMATIC INCREMENTAL DOWNFEED.......... 0.0001" TO .0016"
APPROX. MACHINE WEIGHT.................. 4,800 LBS.
MACHINE DIMENSIONS ..................... 81" X 60" X 74"
EQUIPPED WITH: -AUTOMATIC INCREMENTAL DOWNFEED FOR PLUNGE & SURFACE GRINDING WITH "DEEP CUTTING" (1 TO 30 PASSES) FEATURE - DOWNFEED WILL ALLOW MORE THAN ONE PASS & UP TO 30 OF THE DOWNFEED HANDWHEEL (ONE REV. OF HANDWHEEL IS .04")
-SPARKOUT CONTROL (1 TO 30 PASSES)
-TABLE PARKS TO THE SIDE @ COMPLETION OF GRIND CYCLE -POWER RAPID WHEELHEAD POSITIONING -HYDRAULIC LONGITUDINAL & CROSS FEEDS
-POWER RAPID CROSSFEED
-12" X 24" ELECTRO-MAGNETIC CHUCK W/VARIABLE HOLD NEUTROFIER CONTROL.
-AUTOMATIC LUBRICATION FOR WAYS & SCREWS -EXTERNAL HYDRAULIC POWER UNIT -COOLANT SYSTEM
-MANUAL "OVER-THE-WHEEL" DRESSER
-ALL (3) HANDWHEELS @ OPERATOR'S HIP LEVEL
-FINE DOWNFEED BY RATCHET MECHANISM (.0001" GRAD.)
-EXTERNAL HYDRAULIC SYSTEM, 2 H.P. MOTOR
-5 H.P./3/60/220-440 VOLT SPINDLE MOTOR
-MACHINE IS PRESENTLY WIRED FOR 220 VOLTS
