VAN DORN 500HP4300 WIDE PLATEN
Type:
INJECTION MOLDING, HORIZONTAL/VERTICAL
Manufacturer:
VAN DORN
Model:
500HP4300 WIDE PLATEN
Condition:
Not Specified
Year:
1999
Stock #:
25162
Status:
Sold
Description:
500 TON 89 OZ ,PATHFINDER 5000 CONTROL
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

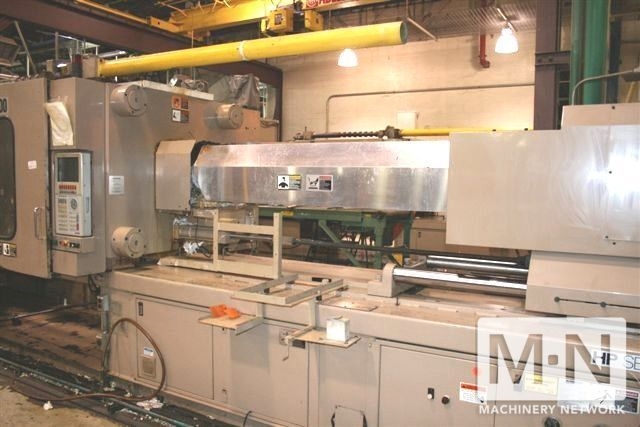

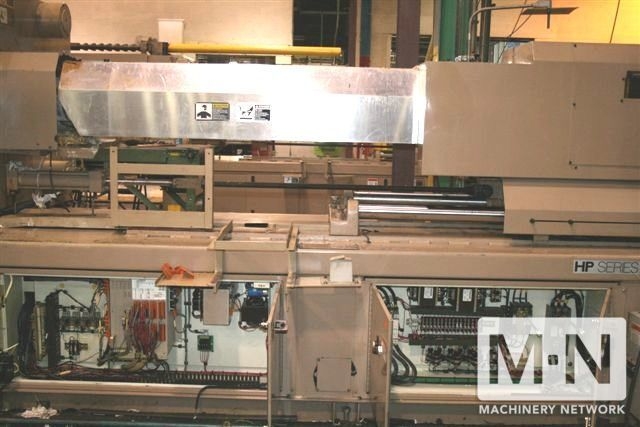

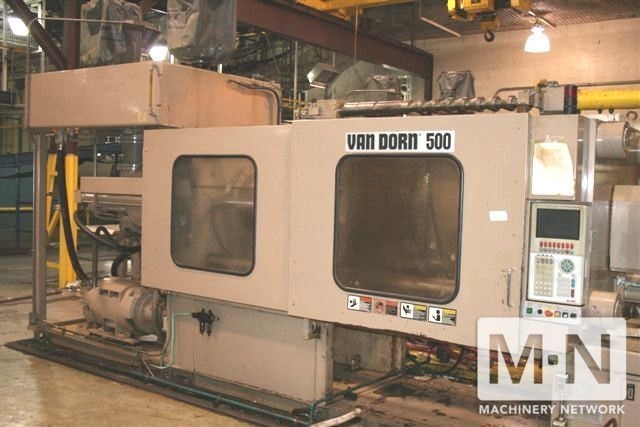

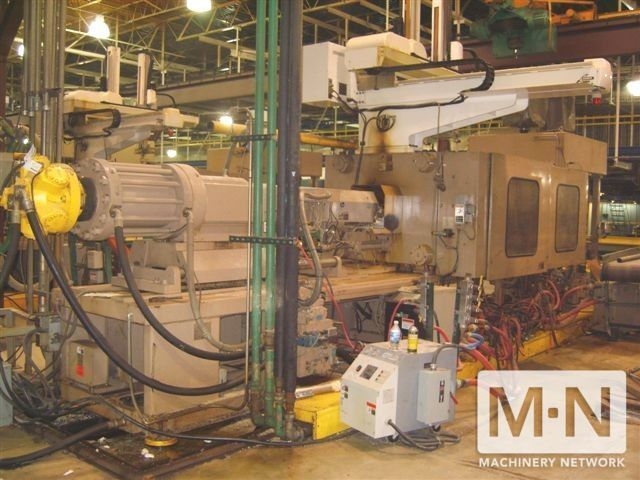

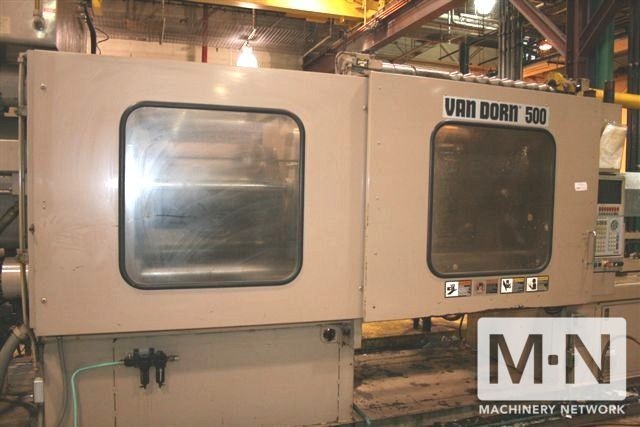

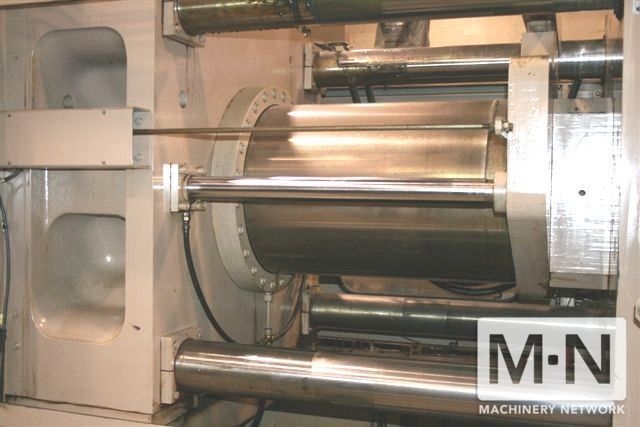

(1) USED 500-TON,89.6 OZ VAN DORN INJECTION MOLDING
MACHINE - MODEL 500HP4300-LP " WIDE PLATEN"
SERIAL #'S 0865 MFG 12/1998 DELIVERED NEW 1999
SPECIFICATIONS:
TONNAGE: 500 TONS
SHOT SIZE: 89.6 OZ
PLATEN DIMENSIONS: 51" X 47"
TIE BAR SPACING: 36.5" X 32.5"
EJECTOR STROKE: 6"
CLAMP STROKE: 40"
MIN/MAX MOLD HEIGHT: 11.5"/27.5"
MIN/MAX DAYLIGHT: 12"/40" (50"/93.5" WITHOUT SPACERS AND
KNOCKOUT PLATE )
EQUIPPED WITH:

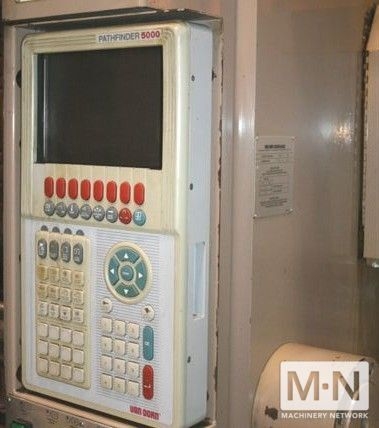

PATHFINDER 5000 CONTROL
EXTENDED TIE BARS
EXTENDED DAYLIGHT 26" W/SPACERS REMOVED
COREPULL
CORE AND EJECTOR KEY SWITCH
PREMIUM FILTRATION
ROBOT INTERFACE
MOTION NO MOTION
RAM CARRIER WITH JACKING SCREWS
** 20,171 HOURS
** PAyment is due in full prior to removal of the machine.
The machine is sold FOB Henderson,KY .The seller is responsible for all loading charges and the buyer is responsible for all trucking charges. The machines is sold with a
30 day MDNA (Machinery Dealers National Association) guarantee which states that the seller will guarantee all major components (such as pump,motor,valves,clamp,controller ) to be in good working order for 30 days after the purchase.
If a problem occurs Machinery Network will repair the part at their cost. Any claims on this warranty shall be provided to Machinery Network in writing.
If the screw and barrel is worn beyond use upon start up, the buyer will send the screw and barrel out to the screw and barrel repair company of the sellers choice to get it inspected and repaired if needed. If the machine is proven mechanically unsatisfactory and can not be fixed in a cost effective or timely manner that suits both parties ,the buyer can then return the machine,freight prepaid, for the refund of the purchase price in full.
MACHINE - MODEL 500HP4300-LP " WIDE PLATEN"
SERIAL #'S 0865 MFG 12/1998 DELIVERED NEW 1999
SPECIFICATIONS:
TONNAGE: 500 TONS
SHOT SIZE: 89.6 OZ
PLATEN DIMENSIONS: 51" X 47"
TIE BAR SPACING: 36.5" X 32.5"
EJECTOR STROKE: 6"
CLAMP STROKE: 40"
MIN/MAX MOLD HEIGHT: 11.5"/27.5"
MIN/MAX DAYLIGHT: 12"/40" (50"/93.5" WITHOUT SPACERS AND
KNOCKOUT PLATE )
EQUIPPED WITH:
PATHFINDER 5000 CONTROL
EXTENDED TIE BARS
EXTENDED DAYLIGHT 26" W/SPACERS REMOVED
COREPULL
CORE AND EJECTOR KEY SWITCH
PREMIUM FILTRATION
ROBOT INTERFACE
MOTION NO MOTION
RAM CARRIER WITH JACKING SCREWS
** 20,171 HOURS
** PAyment is due in full prior to removal of the machine.
The machine is sold FOB Henderson,KY .The seller is responsible for all loading charges and the buyer is responsible for all trucking charges. The machines is sold with a
30 day MDNA (Machinery Dealers National Association) guarantee which states that the seller will guarantee all major components (such as pump,motor,valves,clamp,controller ) to be in good working order for 30 days after the purchase.
If a problem occurs Machinery Network will repair the part at their cost. Any claims on this warranty shall be provided to Machinery Network in writing.
If the screw and barrel is worn beyond use upon start up, the buyer will send the screw and barrel out to the screw and barrel repair company of the sellers choice to get it inspected and repaired if needed. If the machine is proven mechanically unsatisfactory and can not be fixed in a cost effective or timely manner that suits both parties ,the buyer can then return the machine,freight prepaid, for the refund of the purchase price in full.
