OKUMA LT-300BB-MY

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

OKUMA

Model:

LT-300BB-MY

Condition:

Not Specified

Year:

2004

Stock #:

27958

Status:

Sold

Description:

OSP-100L, 7 AXIS, SUB SPDL, LIVE TOOL W/ C+Y AXES, 10"-8" CH, 36" Z-AXIS

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

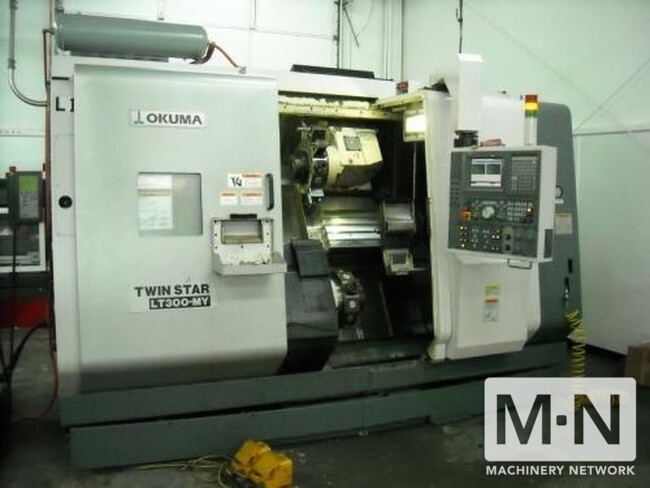

(1) USED OKUMA LT-300BB-MY TWIN SPINDLE, TWIN-TURRET TURNING
CENTER WITH SUB-SPINDLE
(MULTI-FUNCTION C & Y MILL DRILL) NEW 2004

SPECIFICATIONS:
SWING OVER BED 21.65"
MAX. DISTANCE BETWEEN SPINDLE NOSES 47.24"
MAX TURNING DIAMETER 13.78"
MAX MACHINING LENGTH 35"
SPINDLE #1
SPINDLE NOSE A2-8"
BORE DIAMETER 3.15"
BAR WORK CAPACITY 2.5"
RANGE OF SPINDLE SPEED (Main & Sub) 40-4000 RPM
C-AXIS INDEXING (Main & Sub) .001 Deg.
Y-AXIS TRAVEL (UPPER TURRET ONLY) 6.30" (-3.15"-+3.15")
CROSS-SLIDE TRAVEL
(XA-AXIS) 10.63"
(XB-AXIS) 9.06"
LONGITUDINAL TRAVEL
(ZA-AXIS) 36.61"
(ZB-AXIS) 36.22"
(W-AXIS) 37.01"
RAPID TRAVERSSE SPEED
(Z-AXIS) 1574 IPM
(X-AXIS) 1181 IPM
(W-AXIS) 1574 IPM
(Y-AXIS) 1024 IPM
TYPE AND NO OF TOOL STATIONS

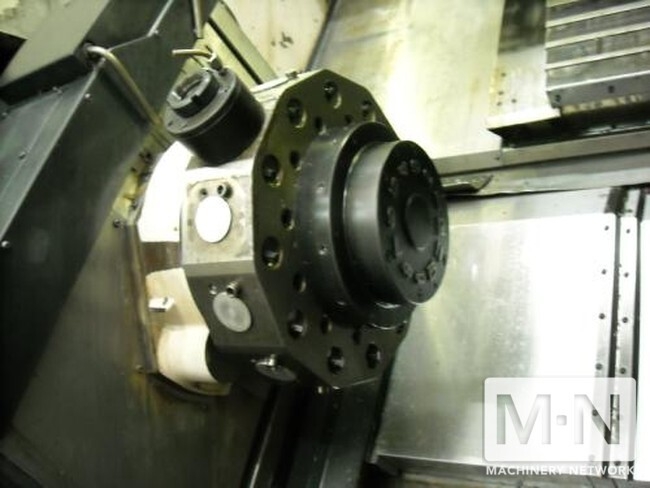

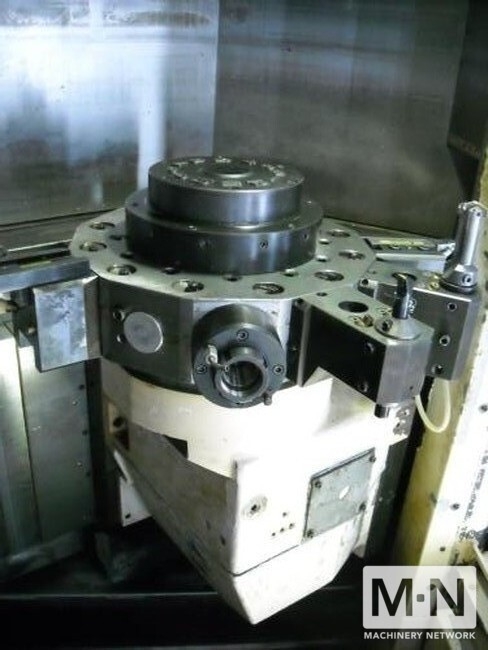

TURRET NO.1 (12 Rotary) AUTO VERT. V 12
TURRET NO.2 (12 Rotary) AUTO VERT. V 12
MAIN SPINDLE DRIVE MOTOR (MAIN & SUB) 30/20 HP
ROTARY TOOL SPINDLE SPEED 100-4500 RPM
ROTARY TOOL HORSE POWER 9.5 HP
MACHINE WEIGHT 26,000 LBS.

EQUIPPED WITH:

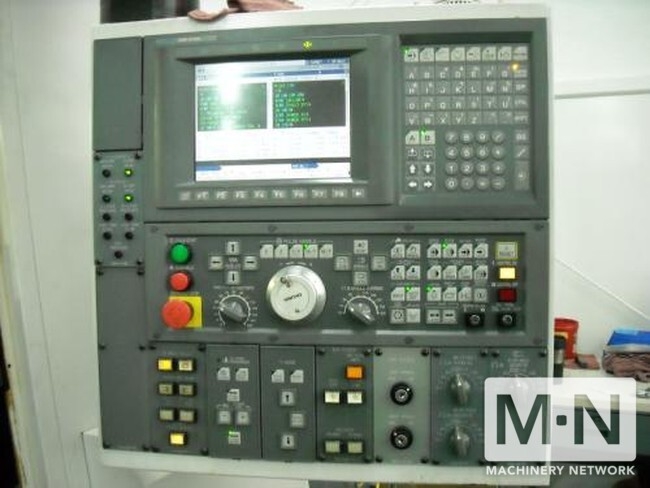

OSP E100L COLOR CNC CONTROL
1 TOUCH IGF WITH TOOL PRESETTER
Y-HORI. BARRIER
HI-G CONTROL
NC TURRET
HEAVY TOOLING
B-TURRET SUB SPINDLE
MULTIPLE MACHINING
B-TURRET M-AXIS
SERVO LINK NCS
SERVO LINK SPINDLE
TAPE DATA IN/OUT
T-SEPARATE EDIT
BUFFER 320 METERS
PLANE CONVERSION
PROFILE GENERATION
SYNCHRO TAPPING
HELICAL CUTTING
HARMONIC SPINDLE SP.
N/C TORQUE LIMIT.
LAP 4
NOSE-R 2B
USER TASK 2
EXP. AUTO CHAMFER
PROGRAMMING HELP
HELP
E100 SPEC.
3D ANIMATION
ANIMATION
U100/U10 SPEC.
PITCH ERROR COMPENSATION
TURRET POS. COMP.
TOOL LIFE MANAGEMENT
TOOL WEAR COMPENSATION
I/M SWITCH
CYCLE TIME CALCULATION
CYCLE TIME RE. NEW
N/C WORK COUNTER
N/C WORK MONITOR
CYCLE TIME CHECK
LOAD MONITOR
MAC MAN
THERMAL COMP L2
PLC
SPINDLE ORIENTATION
M-AXIS ORIENTATION
SPINDLE MAX. IL.
PARTS CATCHER

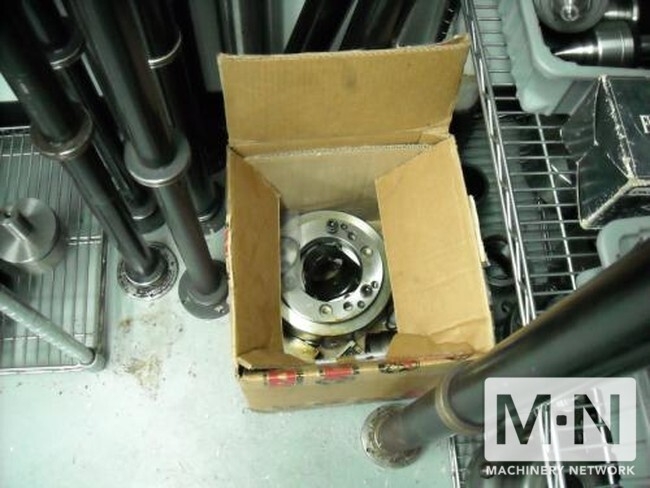

SMW SELF CONTAINED AIR COLLET CHUCK LEFT SPINDLE (MOUNTED)

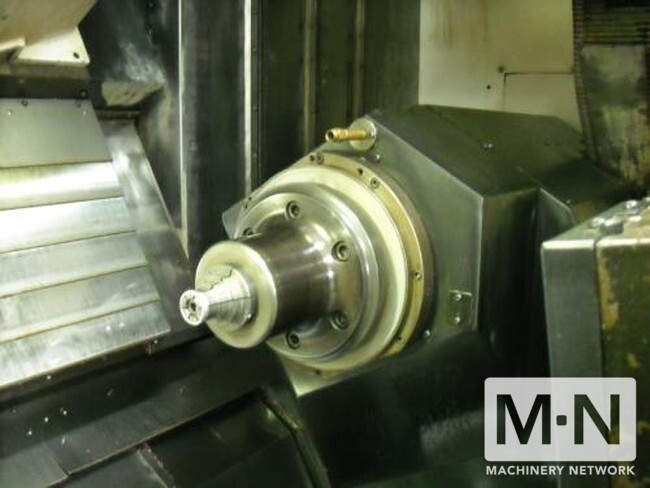

HYDRAULIC COLLET CHUCK RIGHT SPINDLE (MOUNTED)
(2) 10" 3 JAW HYDRAULIC CHUCKS (BOXED) WITH ACTUATOR AND DRAW TUBE
CHUCK GRASP CONFIRMATION
SPINDLE ORIENT ELECTRIC
N/C TURRET WITH BRAKE
M-AXIS ORIENTATION
B-TURRET M-AXIS
(2) GRUNFOSS HIGH PRESSURE 75 PSI COOLANT PUMPS
(2) GRAYMILLS 120 PSI PUMPS WITH SEPARATE COOLANT RESERVOIR

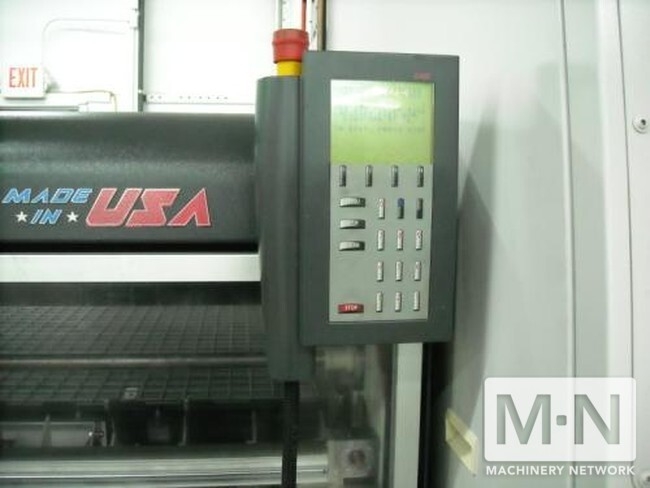

BAR FEED INTERFACE
LOAD MONITOR
MULTI TAP TRANSFORMER
Y AXIS MILLING OPTION
DUAL CHIP CONVEYORS (REAR DISCHARGE)
CYCLE TIME REDUCTION
C-X AXIS CONTOURING FUNCTION

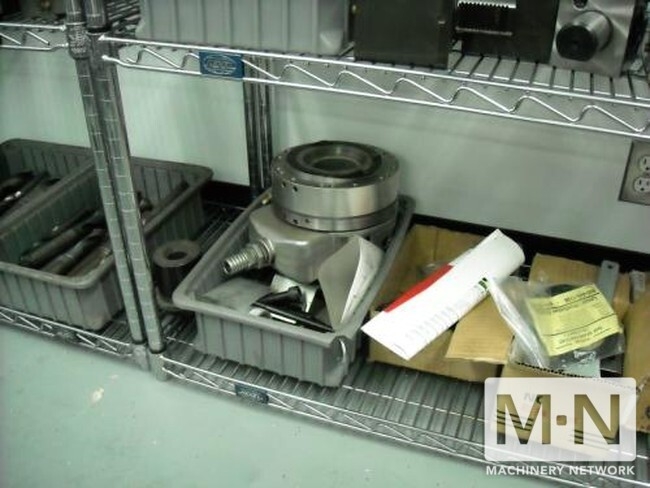

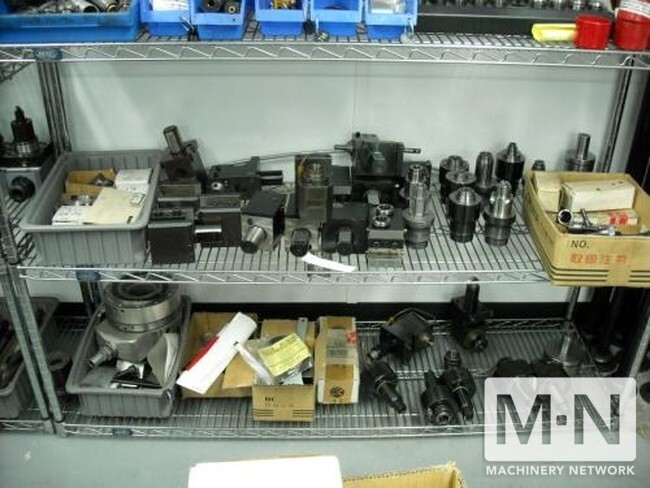

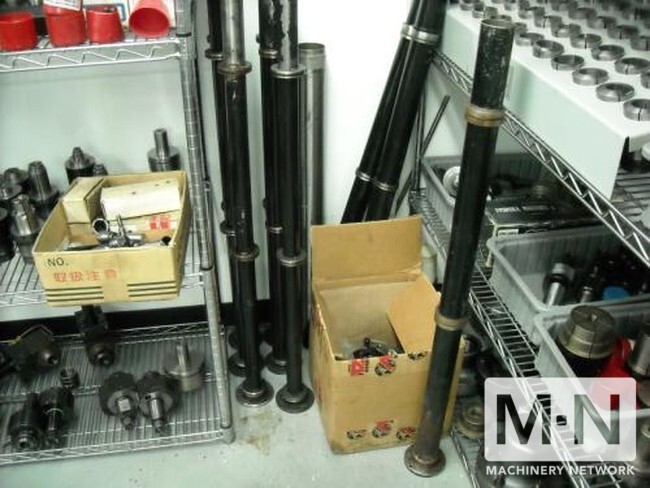

(22) TURNING , FACING, BORING HEADS
(7) STRAIGHT MILLING HEADS
(6) RT. ANGLE MILLING HEADS
ALL STANDARD TURRET HOLDERS
ALL AVAILABLE MANUALS
