BRIDGEPORT 2J
Type:
MILLERS, VERTICAL
Manufacturer:
BRIDGEPORT
Model:
2J
Condition:
Not Specified
Year:
1976
Stock #:
29605
Status:
Sold
Description:
1.5 hp, vari speed, pwr X feed
Location:
New Mexico, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

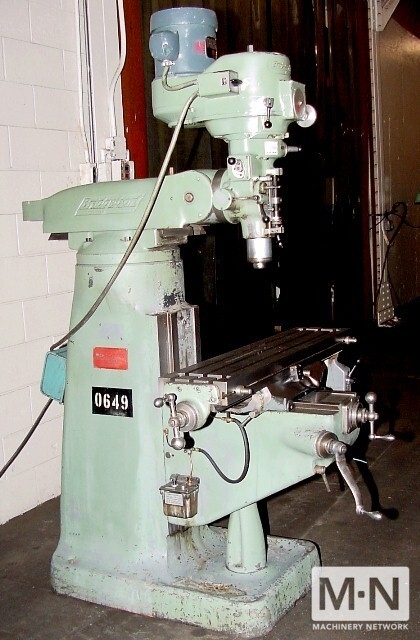

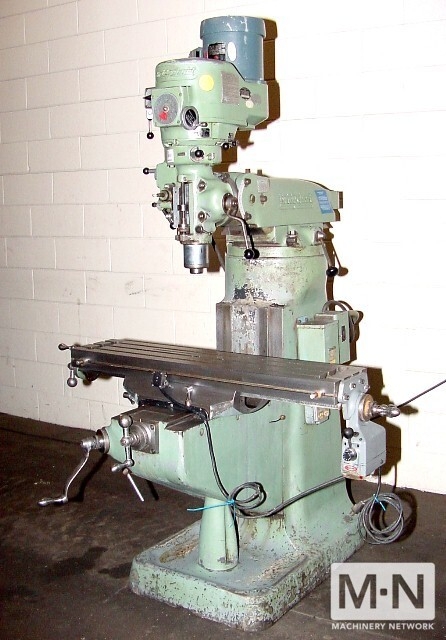

(1) USED BRIDGEPORT MODEL 2J VERTICAL MILLING MACHINE S/N: 178466 NEW: 1976
SPECIFICATIONS:
TABLE SIZE .......................... 9" X 42"
MAXIMUM WEIGHT OF WORKPIECE ......... 750 LBS
LONGITUDINAL TABLE TRAVEL ........... 30"
CROSS TRAVEL ........................ 12"
QUILL TRAVEL ........................ 5"
KNEE TRAVEL ......................... 16"
RAM TRAVEL .......................... 12"
MIN. / MAX. THROAT DISTANCE ......... 6-3/4" - 18-3/4"
INFINITELY VARIABLE SPEED RANGE ..... 60-4,200 RPM
SPINDLE TAPER ....................... R-8
QUILL TRAVEL ........................ 5"
QUILL FEEDS ......................... 0.0015", 0.003", 0.006" APPROXIMATE WEIGHT .................. 2,000 LBS
EQUIPPED WITH:
1 1/2 HP VARI SPEED MILLING HEAD
BRIDGEPORT POWER FEED ON LONGITUDINAL AXIS
ONE SHOT LUBE
WORK LIGHT
INSPECT IN NEW JERSEY
SPECIFICATIONS:
TABLE SIZE .......................... 9" X 42"
MAXIMUM WEIGHT OF WORKPIECE ......... 750 LBS
LONGITUDINAL TABLE TRAVEL ........... 30"
CROSS TRAVEL ........................ 12"
QUILL TRAVEL ........................ 5"
KNEE TRAVEL ......................... 16"
RAM TRAVEL .......................... 12"
MIN. / MAX. THROAT DISTANCE ......... 6-3/4" - 18-3/4"
INFINITELY VARIABLE SPEED RANGE ..... 60-4,200 RPM
SPINDLE TAPER ....................... R-8
QUILL TRAVEL ........................ 5"
QUILL FEEDS ......................... 0.0015", 0.003", 0.006" APPROXIMATE WEIGHT .................. 2,000 LBS
EQUIPPED WITH:
1 1/2 HP VARI SPEED MILLING HEAD
BRIDGEPORT POWER FEED ON LONGITUDINAL AXIS
ONE SHOT LUBE
WORK LIGHT
INSPECT IN NEW JERSEY
