NARDINI NODUS 1760E
Type:
LATHES, ENGINE
Manufacturer:
NARDINI
Model:
NODUS 1760E
Condition:
Not Specified
Year:
1990
Stock #:
31036
Status:
Sold
Description:
17"x60", gap, taper, 3 jaw chuck
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

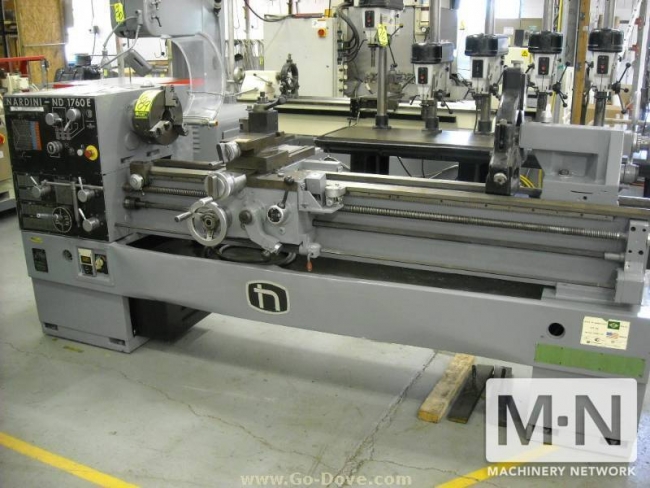

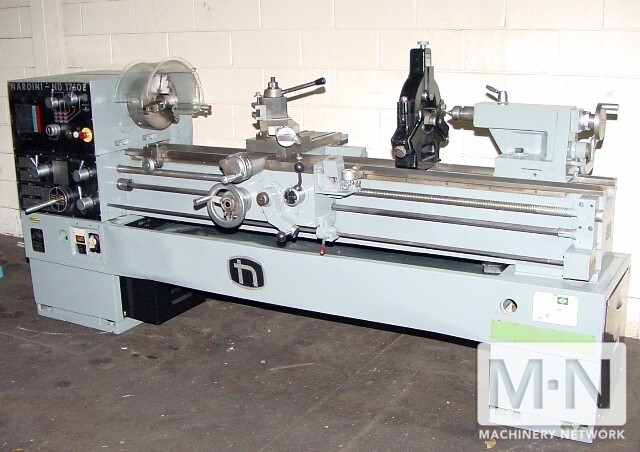

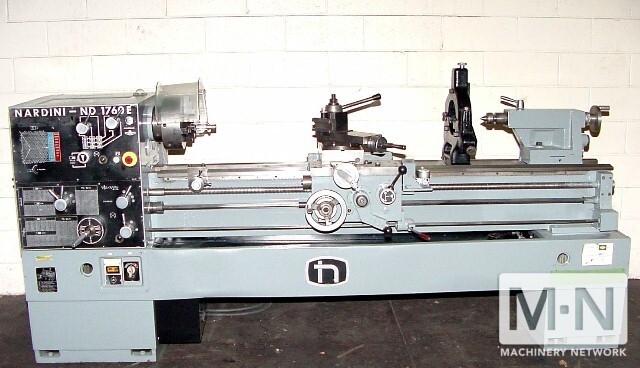

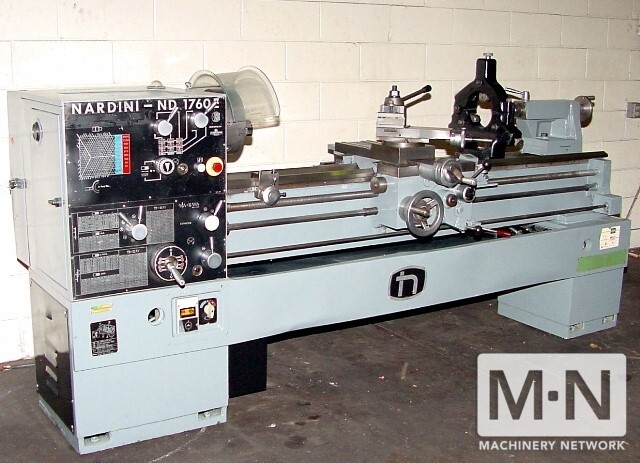

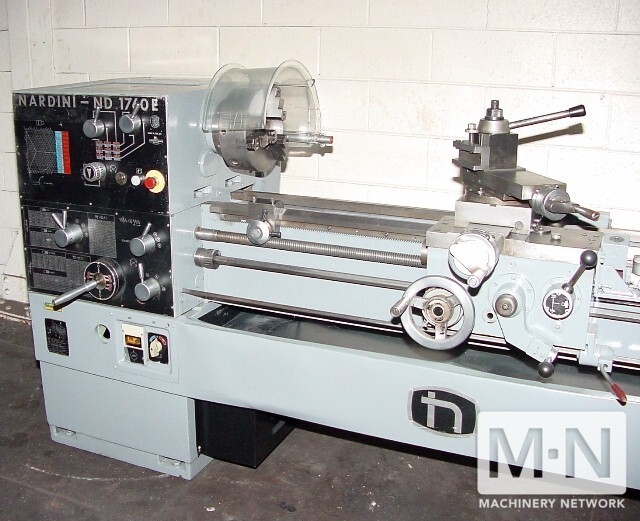

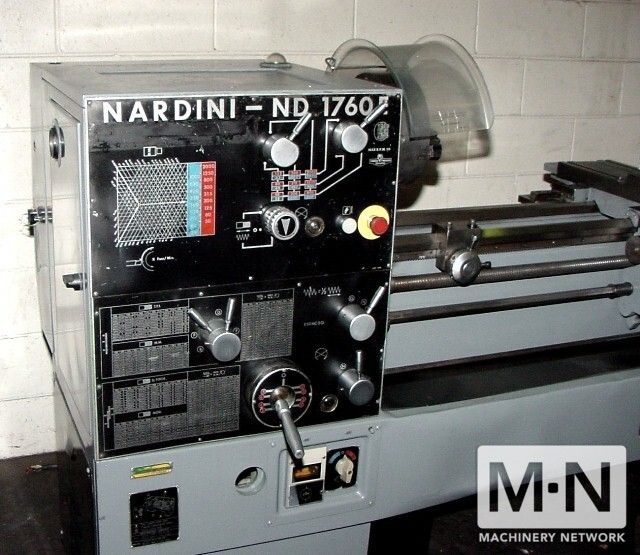

(1) Used 17"x60" Nardini Model Nodus 1760E Gap Bed Engine Lathe - New 1990's
SPECIFICATIONS:
SWING OVER BED ....................... 17-1/4"
SWING IN REMOVEABLE GAP .............. 24-3/4"
SWING OVER CROSS SLIDE ............... 10-5/8"
HOLE THRU SPINDLE .................... 2-1/32"
DISTANCE BETWEEN CENTERS ............. 60"
SPINDLE NOSE ......................... D1-6"CAMLOCK
SPINDLE SPEED RANGE (18) ............. 25 - 2000 RPM
LONGITUDINAL FEED RANGE .............. .0021 - .0976 IPR
CROSS FEED RANGE ..................... .0010 - .0488 IPR
ENGLISH THREADING RANGE (54) ......... 2-3/4 - 42 TPI
METRIC THREADING RANGE (54) .......... .4 - 18.472 mm
TAILSTOCK SPINDLE TRAVEL ............. 7-7/8"
TAILSTOCK SPINDLE TAPER .............. #4MT
APPROXIMATE DIMENSIONS ............... 12"L X 40"W
APPROX WEIGHT ........................ 3,250 LBS
EQUIPPED WITH:
INCH/METRIC THREADING
TAPER TURNING ATTACHMENT
3-JAW CHUCK
STEADY REST
ALORIS QUICK CHANGE TOOLPOST
THREAD DIAL INDICATOR
COOLANT SYSTEM
REMOVEABLE CHIP PAN
HARDENED & GROUND BEDWAYS
8 / 4 HORSE POWER TWO SPEED MAIN MOTOR
INSPECT IN NEW JERSEY
SPECIFICATIONS:
SWING OVER BED ....................... 17-1/4"
SWING IN REMOVEABLE GAP .............. 24-3/4"
SWING OVER CROSS SLIDE ............... 10-5/8"
HOLE THRU SPINDLE .................... 2-1/32"
DISTANCE BETWEEN CENTERS ............. 60"
SPINDLE NOSE ......................... D1-6"CAMLOCK
SPINDLE SPEED RANGE (18) ............. 25 - 2000 RPM
LONGITUDINAL FEED RANGE .............. .0021 - .0976 IPR
CROSS FEED RANGE ..................... .0010 - .0488 IPR
ENGLISH THREADING RANGE (54) ......... 2-3/4 - 42 TPI
METRIC THREADING RANGE (54) .......... .4 - 18.472 mm
TAILSTOCK SPINDLE TRAVEL ............. 7-7/8"
TAILSTOCK SPINDLE TAPER .............. #4MT
APPROXIMATE DIMENSIONS ............... 12"L X 40"W
APPROX WEIGHT ........................ 3,250 LBS
EQUIPPED WITH:
INCH/METRIC THREADING
TAPER TURNING ATTACHMENT
3-JAW CHUCK
STEADY REST
ALORIS QUICK CHANGE TOOLPOST
THREAD DIAL INDICATOR
COOLANT SYSTEM
REMOVEABLE CHIP PAN
HARDENED & GROUND BEDWAYS
8 / 4 HORSE POWER TWO SPEED MAIN MOTOR
INSPECT IN NEW JERSEY
