TOSHIBA MPF-2140
Type:
Vertical Machining Centers
Manufacturer:
TOSHIBA
Model:
MPF-2140
Condition:
Not Specified
Year:
1999
Stock #:
34423
Status:
Sold
Description:
TOSNUC 888 Control, 177"X82"x23" , +/- 30 Degrees A&B Axes, CAT 50,
Location:
Colorado, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

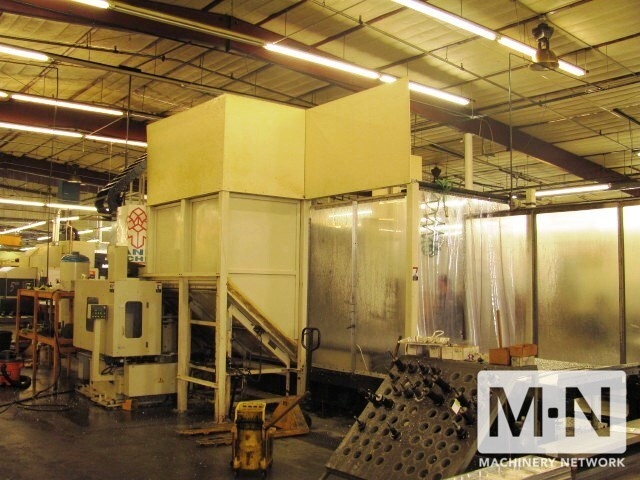

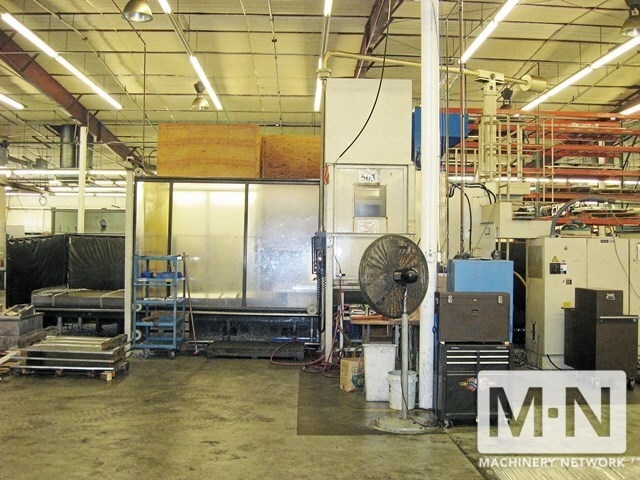

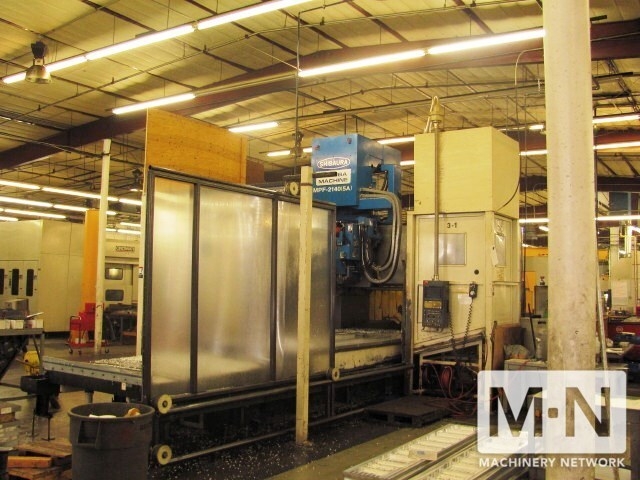

(1) USED TOSHIBA MPF-2140 5-AXIS CNC MACHINING CENTER
NEW 1999
SPECIFICATIONS:
TRAVELS:
Y-AXIS, CROSS TRAVEL OF HEAD .......82.7"
Z-AXIS, VERTICAL RAM ...............23.6"

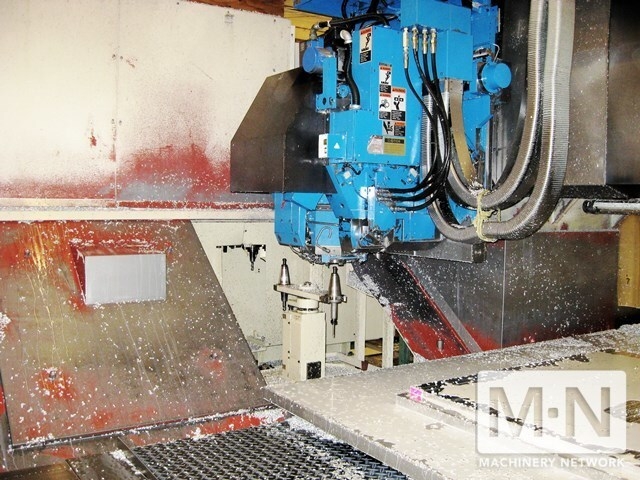

A-AXIS, HEAD SWIVEL ............+/- 30 DEGREES
B-AXIS, HEAD TILT ..............+/- 30 DEGREES
DISTANCE BETWEEN COLUMNS ...........118.11"
TABLE WORK SURFACE, T-SLOTTED ......82.67" X 200.78"
SPINDLE NOSE TO TABLE SURFACE ..... 31.5"
SPINDLE TAPER ..................CAT 50
SPEEDS .............................20 TO 12,000 RPM
SPINDLE MOTOR ..................... 60 HP
MAXIMUM TORQUE .....................722.7N-M (535 FT LBS)
RAPID TRAVERSE, X & Y AXIS .........787.4 IPM
RAPID TRAVERSE, A & B AXIS .........939.7 IPM
FEED RATE, X, Y, Z AXIS ............0.04-393.7 IPM
TABLE LOAD CAPACITY ................44,000 LBS.
FLOOR SPACE ........................232" X 504"
HEIGHT .............................197"
EQUIPPED WITH:
TOSNUC 888 CNC CONTROL

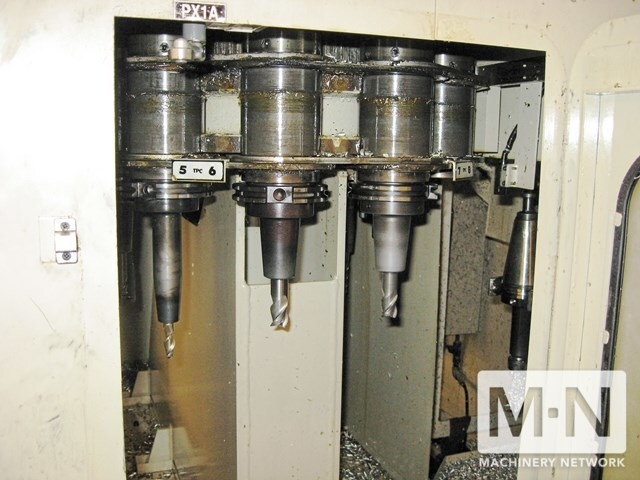

24 STATION ATC
SWING TYPE PENDANT STATION
AIR BLOW
COOLANT THRU SPINDLE
WAY COVERS
FULL GUARDING
CHIP CONVEYORS
NEW 1999
SPECIFICATIONS:
TRAVELS:
Y-AXIS, CROSS TRAVEL OF HEAD .......82.7"
Z-AXIS, VERTICAL RAM ...............23.6"
A-AXIS, HEAD SWIVEL ............+/- 30 DEGREES
B-AXIS, HEAD TILT ..............+/- 30 DEGREES
DISTANCE BETWEEN COLUMNS ...........118.11"
TABLE WORK SURFACE, T-SLOTTED ......82.67" X 200.78"
SPINDLE NOSE TO TABLE SURFACE ..... 31.5"
SPINDLE TAPER ..................CAT 50
SPEEDS .............................20 TO 12,000 RPM
SPINDLE MOTOR ..................... 60 HP
MAXIMUM TORQUE .....................722.7N-M (535 FT LBS)
RAPID TRAVERSE, X & Y AXIS .........787.4 IPM
RAPID TRAVERSE, A & B AXIS .........939.7 IPM
FEED RATE, X, Y, Z AXIS ............0.04-393.7 IPM
TABLE LOAD CAPACITY ................44,000 LBS.
FLOOR SPACE ........................232" X 504"
HEIGHT .............................197"
EQUIPPED WITH:
TOSNUC 888 CNC CONTROL
24 STATION ATC
SWING TYPE PENDANT STATION
AIR BLOW
COOLANT THRU SPINDLE
WAY COVERS
FULL GUARDING
CHIP CONVEYORS
