PARPAS OMNIA 32
Type:
Vertical Machining Centers
Manufacturer:
PARPAS
Model:
OMNIA 32
Condition:
Not Specified
Year:
2007
Stock #:
35119
Status:
Sold
Description:
PARPAS OMNIA 32, 118"X98"X59", 50 TAPER,
Location:
Michigan, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

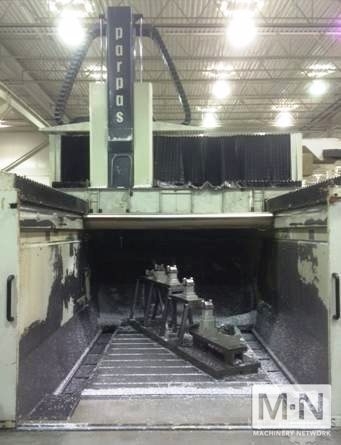

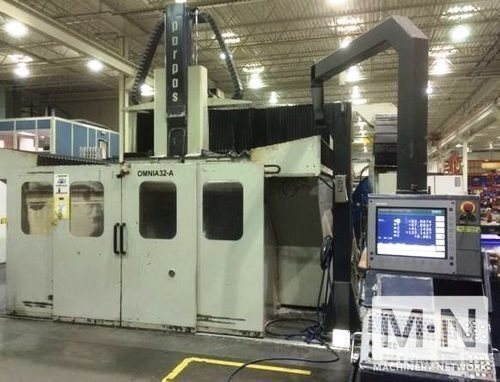

(1) USED PARPAS OMNIA 32 5-AXIS GANTRY MILLING MACHINE
NEW 2007
SPECIFICATIONS:
X-AXIS, LONGITUDINAL:.......................118.11"
Y-AXIS, CROSS:..............................98.42"
Z-AXIS, VERTICAL RAM:.......................59.06"
C-AXIS, ROTATION (BUILT INTO RAM):..........10 RPM
A-AXIS, HEAD SWIVEL:.....................+/-120 DEGREES
DISTANCE BETWEEN COLUMNS....................125.98"
TABLE WORK SURFACE, T-SLOTTED...............78.74" X 157.48"
SPINDLE NOSE TO TABLE SURFACE...............64.96"
CONICAL MILLING HEAD:
HEAD EXTENSION .............................15.75"
SPINDLE TAPER ..........................ISO 50
SPEED (MAXIMUM) ............................6,000 RPM
POWER (MAXIMUM) ............................30 HP CONTINUOUS
MAXIMUM POWER RANGE ........................1500-6000 RPM
DRAW BAR POWER

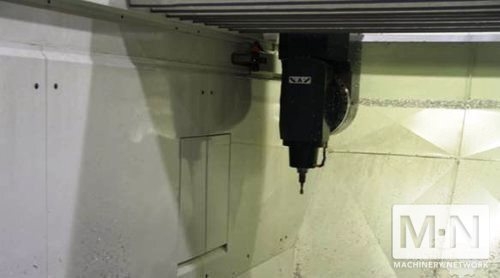

CNC CONTROLLED 90/90 MILLING HEAD:.........(TUE 90)
SPINDLE TAPER ..........................ISO 40/HSK 63
SPEEDS .....................................6,000-22,000 RPM
POWER (MAXIMUM) ............................20 HP
MAXIMUM POWER RANGE ........................10,000-20,000 RPM
A-AXIS RANGE OF MOTION .....................240 DEGREES
C-AXIS RANGE OF MOTION .....................INFINITE
POSITIONING INCREMENTS .....................0.001 DEGREE
POSITIONS (A-AXIS) .........................240,000
POSITIONS (C-AXIS) .........................360,000
AXIS DRIVE SYSTEM:
FEED RATE ..................................945 IPM
ACCELERATION/DECELERATION RATE..............78.74" PER SEC 2
SERVOMOTOR TYPE DIGITAL SIEMENS
BALLSCREW DIAMETER/PITCH, X ................3.1"/0.63"
BALLSCREW DIAMETER/PITCH, Y ................2.5"/0.63"
BALLSCREW DIAMETER/PITCH, Z ................2"/0.47"
LENGTH X DEPTH .............................264" X 240"
HEIGHT .....................................240"
EQUIPPED WITH:
HEIDENHAIN ITNC-530 CNC CONTROL
20 STATION AUTOMATIC TOOL CHANGER
AUTOMATIC HEAD CHANGER AND STORAGE
HEIDENHAIN ABSOLUTE POSITIONING LINEAR SCALES
WATER COOLED SPINDLE MOTOR BUILT INTO MACHINE RAM
CONTINUOUS MACHINING C-AXIS BUILT INTO MACHINE RAM

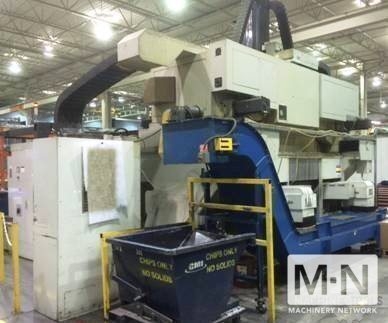

DUAL AUTOMATIC CHIP CONVEYORS
FLOOD COOLANT SYSTEM
LASER TOOL PROBING SYSTEM
WAY COVERS
FULL GUARDING
APPROXIMATE DIMENSIONS:........264"(LR) X 240"(FB) X 240"(H)
NEW 2007
SPECIFICATIONS:
X-AXIS, LONGITUDINAL:.......................118.11"
Y-AXIS, CROSS:..............................98.42"
Z-AXIS, VERTICAL RAM:.......................59.06"
C-AXIS, ROTATION (BUILT INTO RAM):..........10 RPM
A-AXIS, HEAD SWIVEL:.....................+/-120 DEGREES
DISTANCE BETWEEN COLUMNS....................125.98"
TABLE WORK SURFACE, T-SLOTTED...............78.74" X 157.48"
SPINDLE NOSE TO TABLE SURFACE...............64.96"
CONICAL MILLING HEAD:
HEAD EXTENSION .............................15.75"
SPINDLE TAPER ..........................ISO 50
SPEED (MAXIMUM) ............................6,000 RPM
POWER (MAXIMUM) ............................30 HP CONTINUOUS
MAXIMUM POWER RANGE ........................1500-6000 RPM
DRAW BAR POWER
CNC CONTROLLED 90/90 MILLING HEAD:.........(TUE 90)
SPINDLE TAPER ..........................ISO 40/HSK 63
SPEEDS .....................................6,000-22,000 RPM
POWER (MAXIMUM) ............................20 HP
MAXIMUM POWER RANGE ........................10,000-20,000 RPM
A-AXIS RANGE OF MOTION .....................240 DEGREES
C-AXIS RANGE OF MOTION .....................INFINITE
POSITIONING INCREMENTS .....................0.001 DEGREE
POSITIONS (A-AXIS) .........................240,000
POSITIONS (C-AXIS) .........................360,000
AXIS DRIVE SYSTEM:
FEED RATE ..................................945 IPM
ACCELERATION/DECELERATION RATE..............78.74" PER SEC 2
SERVOMOTOR TYPE DIGITAL SIEMENS
BALLSCREW DIAMETER/PITCH, X ................3.1"/0.63"
BALLSCREW DIAMETER/PITCH, Y ................2.5"/0.63"
BALLSCREW DIAMETER/PITCH, Z ................2"/0.47"
LENGTH X DEPTH .............................264" X 240"
HEIGHT .....................................240"
EQUIPPED WITH:
HEIDENHAIN ITNC-530 CNC CONTROL
20 STATION AUTOMATIC TOOL CHANGER
AUTOMATIC HEAD CHANGER AND STORAGE
HEIDENHAIN ABSOLUTE POSITIONING LINEAR SCALES
WATER COOLED SPINDLE MOTOR BUILT INTO MACHINE RAM
CONTINUOUS MACHINING C-AXIS BUILT INTO MACHINE RAM
DUAL AUTOMATIC CHIP CONVEYORS
FLOOD COOLANT SYSTEM
LASER TOOL PROBING SYSTEM
WAY COVERS
FULL GUARDING
APPROXIMATE DIMENSIONS:........264"(LR) X 240"(FB) X 240"(H)
