NICOLAS CORREA FP40/30

Type:

MACHINING CENTERS, GANTRY TYPE, N/C & CNC

Manufacturer:

NICOLAS CORREA

Model:

FP40/30

Condition:

Not Specified

Year:

1998

Stock #:

36265

Status:

Sold

Description:

BRIDGE MILL 98" x 98" x 31", ct-50, 40hp,

Videos:

Product Video #1

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

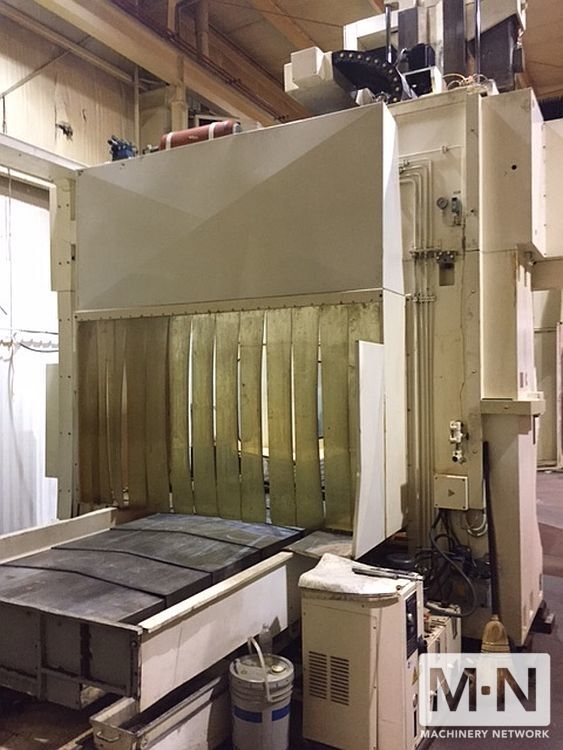

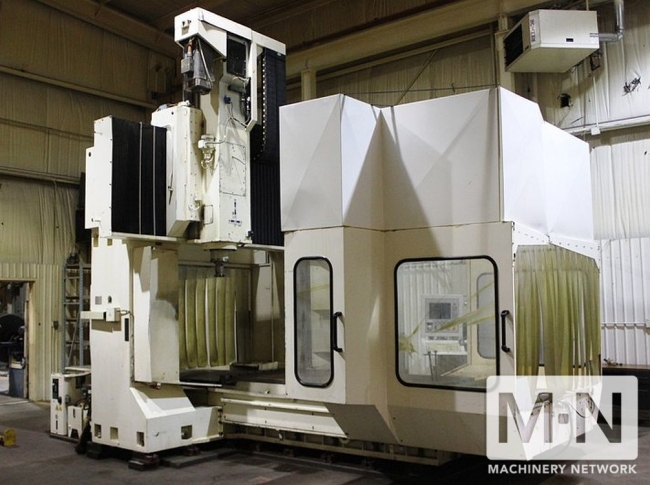

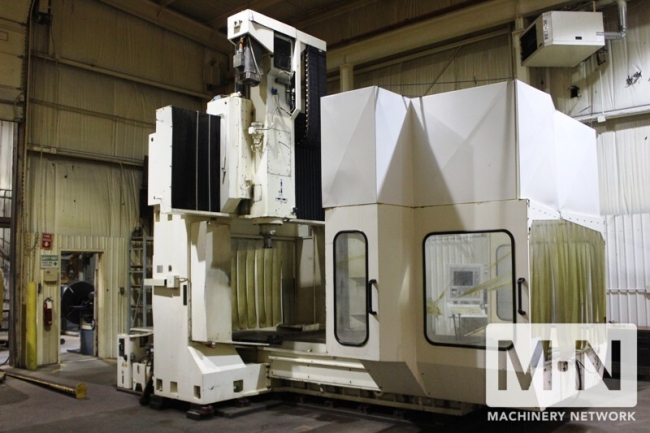

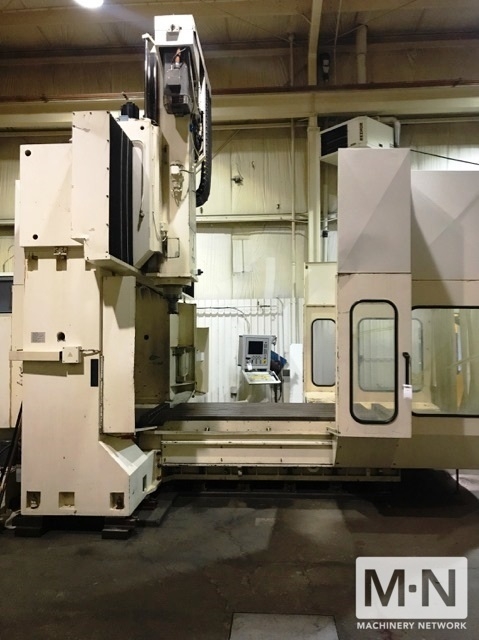

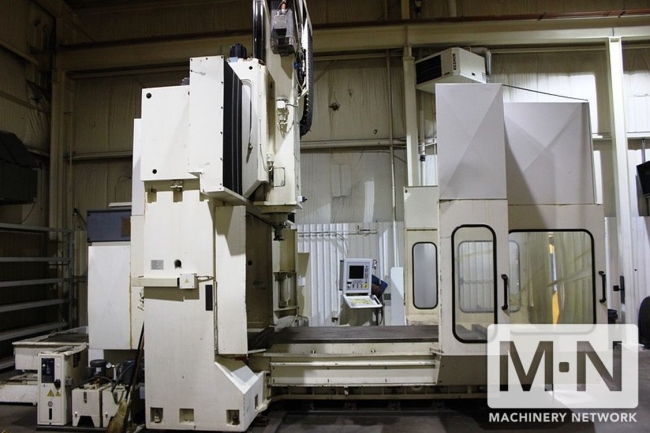

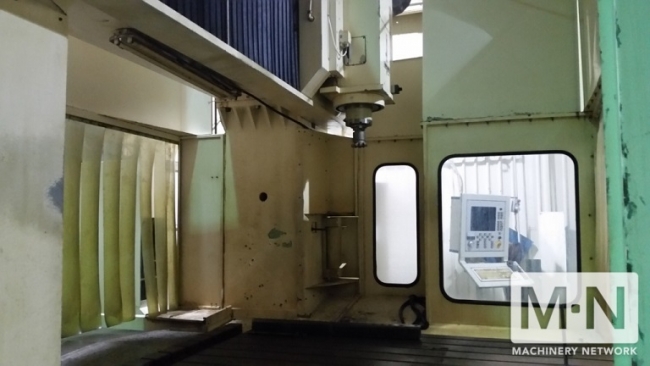

(1) Used Nicolas Correa FP40/30 CNC Bridge Type Mill with Universal Head, New 1998

SPECIFICATIONS:
TABLE WORKING SURFACE ..... 118" x 49.2"
TRAVELS - X AXIS .......... 98"
- Y AXIS........... 98"
- Z AXIS .......... 31"
HEIGHT UNDER RAIL ......... 60"
HEIGHT UNDER SPINDLE ...... 49.21"
TABLE WEIGHT CAPACITY ..... 22,046 LBS
DISTANCE BETWEEN COLUMNS .. 80.31"
RAPID TRAVERSE RATE ....... 590 IPM
FEED RATES ................ 0.0787 - 196.85 IPM
MAX. SPINDLE SPEED ........ 5000 RPM (2 ranges)
SPINDLE HORSEPOWER ........ 40 HP
SPINDLE TAPER ............. CT-50
MACHINE WEIGHT ............ 49,000 LBS

EQUIPPED WITH:

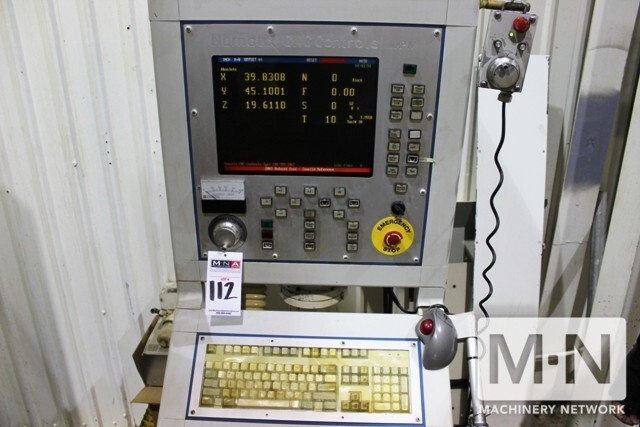

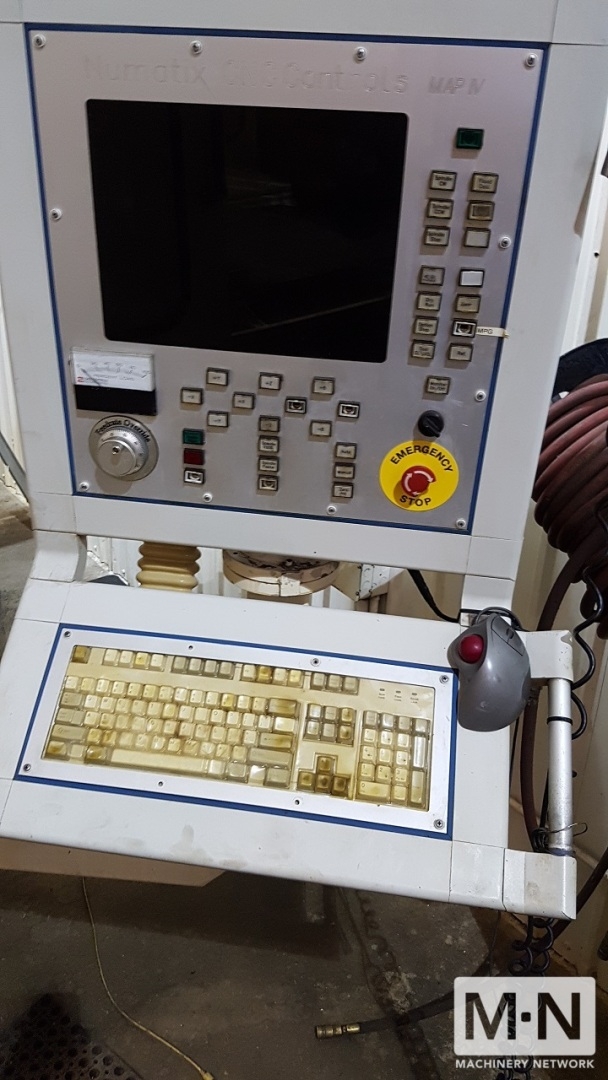

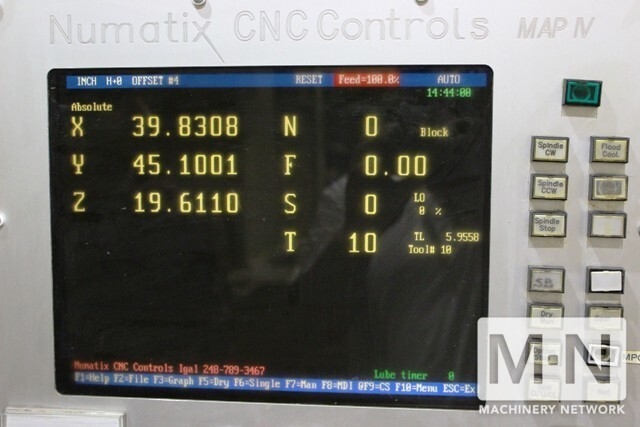

NUMATIX MAP-4 CNC CONTROL

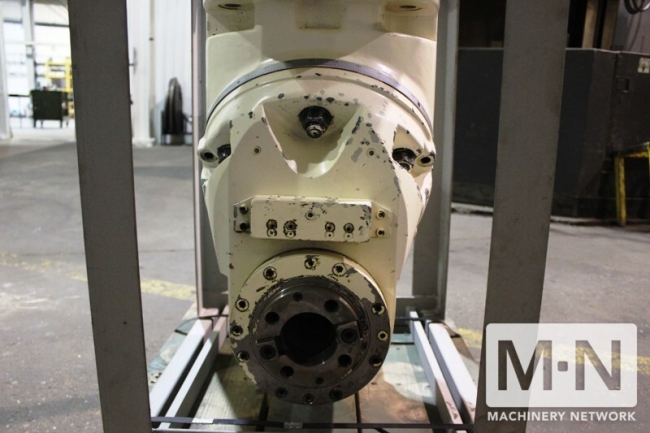

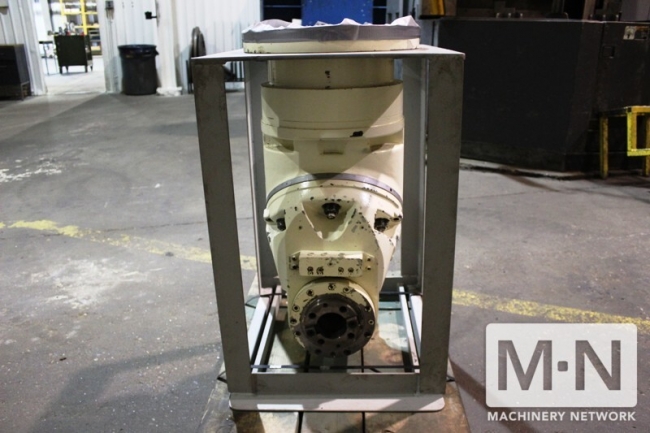

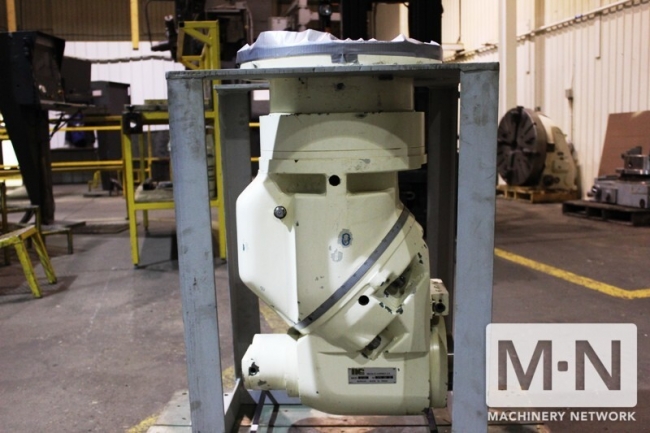

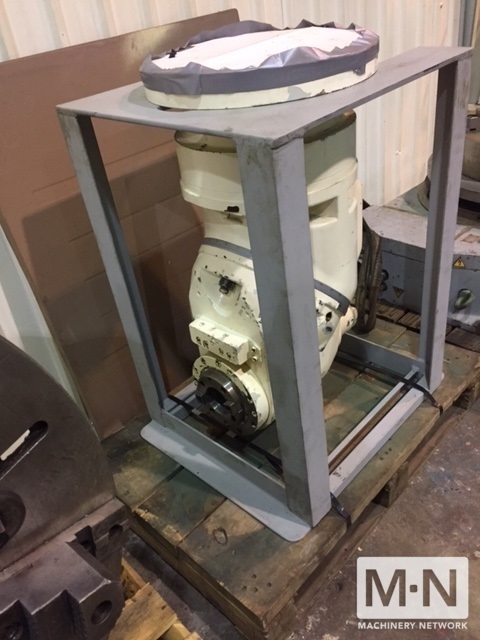

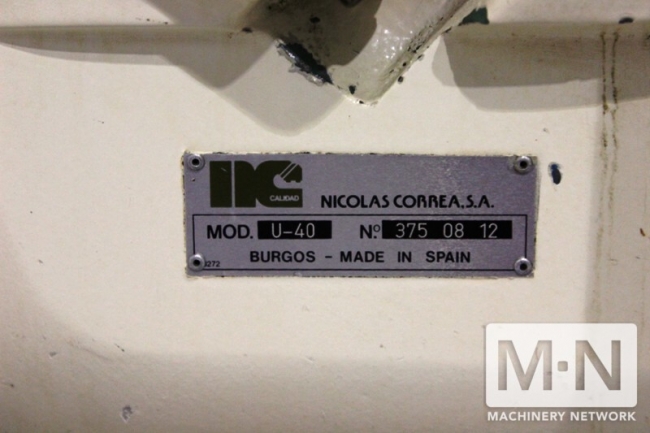

N. CORREA U-40 UNIVERSAL MILLING HEAD, MANUAL INDEX

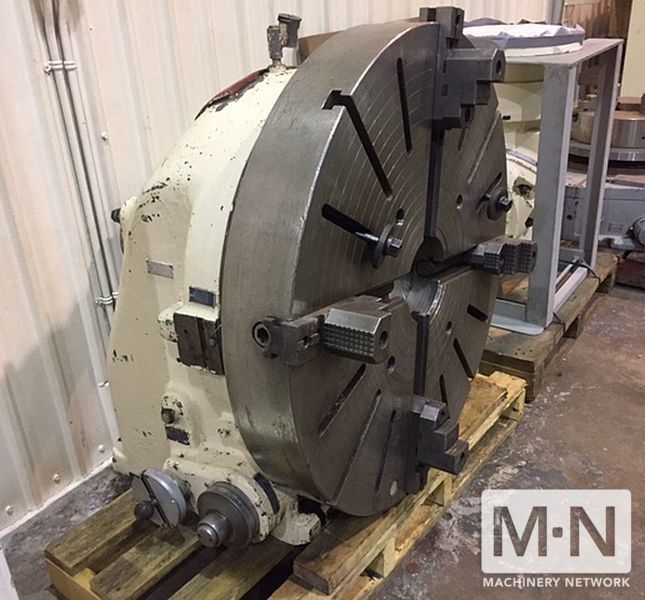

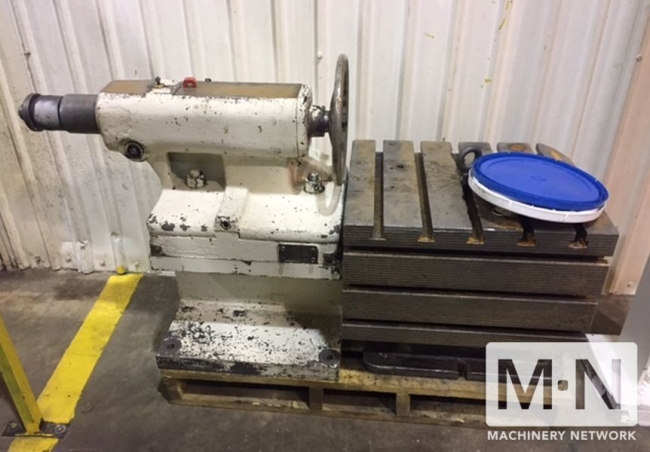

36" ROTARY INDEXER WITH TAILSTOCK

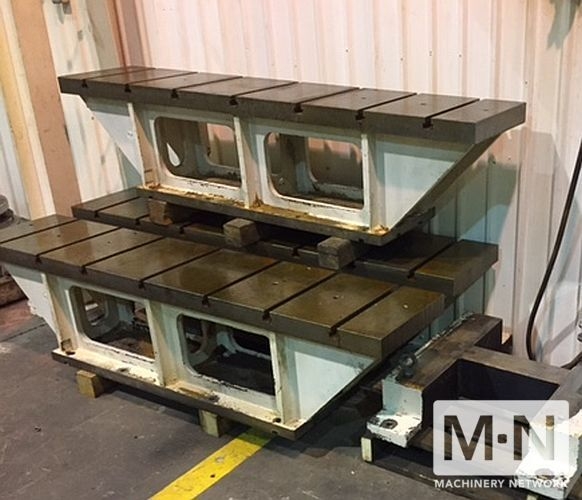

(3) RISER PLATES
MANUALS

Developed by Tech's, that manufactured the Sharnoa Control.
(See attached pdf)

FOR MORE INFORMATION RE THE NUMATIX CONTROL:
Igal Shaham
Numatix Automation, LLC.
35588 veronica st.
Livonia mi 48150
Cell (248)789-3467
ishaham@aol.com
