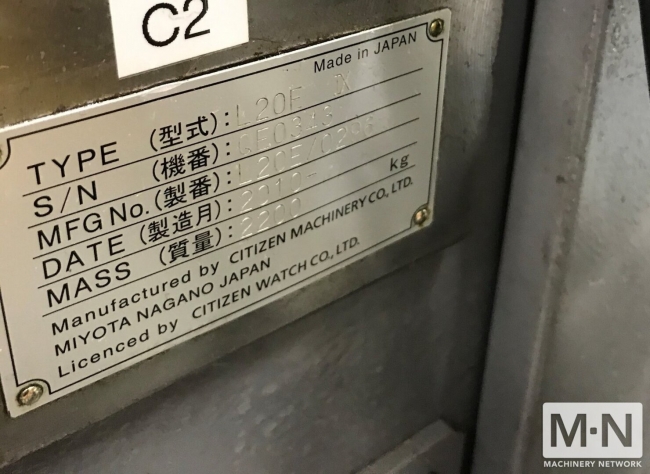

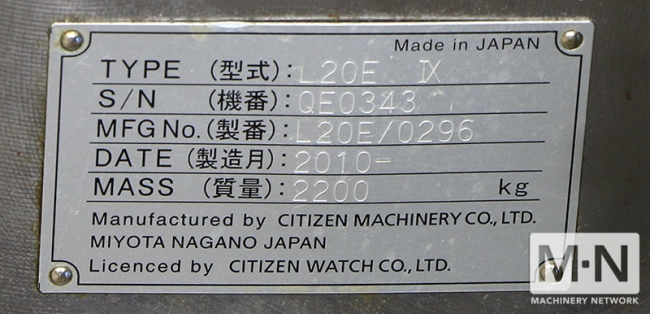

CITIZEN L20E IX
Type:
AUTOMATIC SCREW MACHINES, SWISS TYPE, N/C & CNC
Manufacturer:
CITIZEN
Model:
L20E IX
Condition:
Not Specified
Year:
2010
Stock #:
38359
Status:
Sold
Description:
3/4", Sub, Live tool, Bar Loader, Chip Conv
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

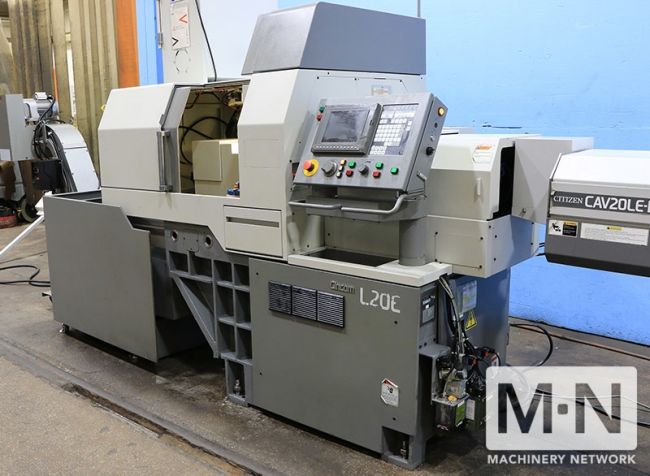

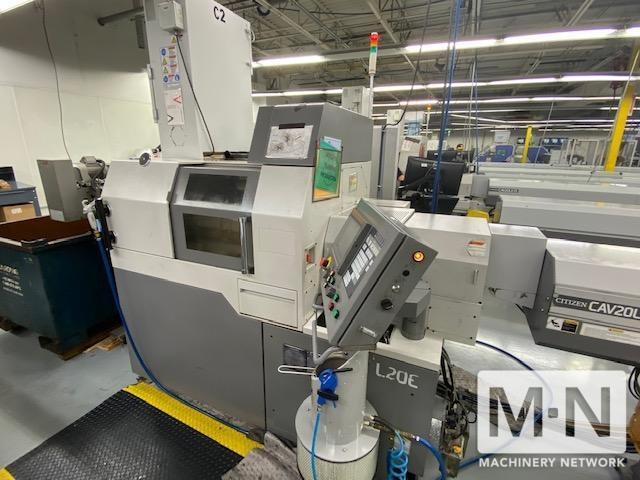

(1) USED 3/4" CITIZEN L20E IX CNC SWISS SCREW MACHINE
NEW 2010
SPECIFICATIONS:
MAX. MACHINING DIAMETER (D): 20 MM (3/4")
MAX. MACHINING LENGTH (L): 200 MM (8")
MAX. FRONT DRILLING DIAMETER: 10 MM (3/8")
MAX. FRONT TAPPING DIAMETER: M8
SPINDLE THROUGH-HOLE DIA: 24 MM
MAIN SPINDLE SPEED: 10,000 RPM

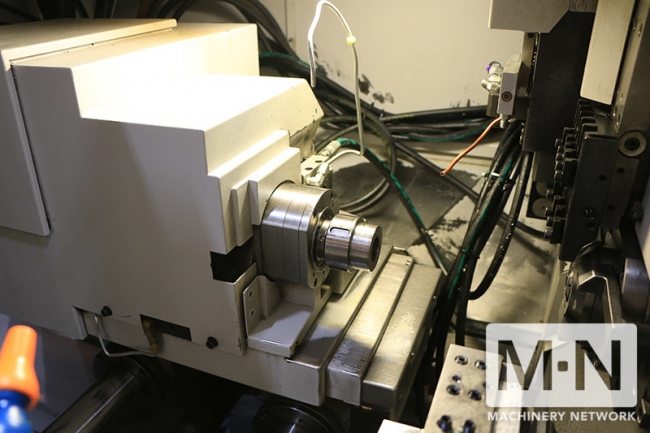

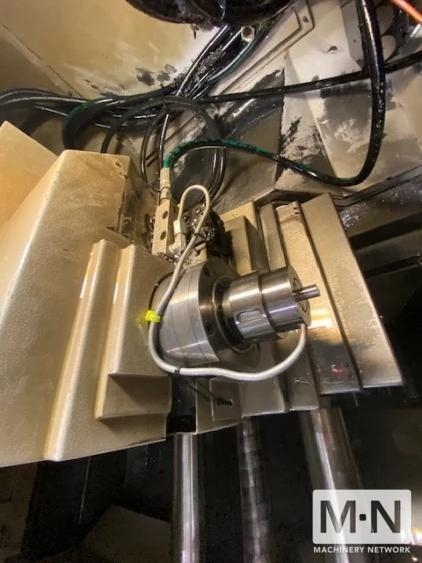

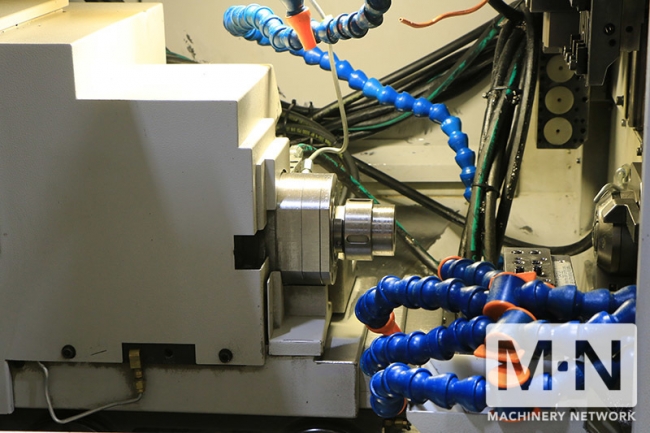

MAX. CHUCK DIA BACK SPINDLE: 20 MM (3/4")
BACK SPINDLE SPEED: 8,000 RPM
NUMBER OF TOOLS TO BE MOUNTED: MAX. 32
TURNING TOOLS ON GANG: 5
LIVE X-DRILL TOOL ON GANG TOOL: 4
LIVE SIDE/FRONT WORKING TOOL BLOCK:3
FRONT ID TOOL POST (STATIONARY): 3
LIVE TOOL - BACK TOOL POST: 4
SPINDLE DRIVE: 2.2 / 3.7 KW
INPUT POWER CAPACITY: 8 KVA
APPROX WEIGHT: 4840 LBS
EQUIPPED WITH:

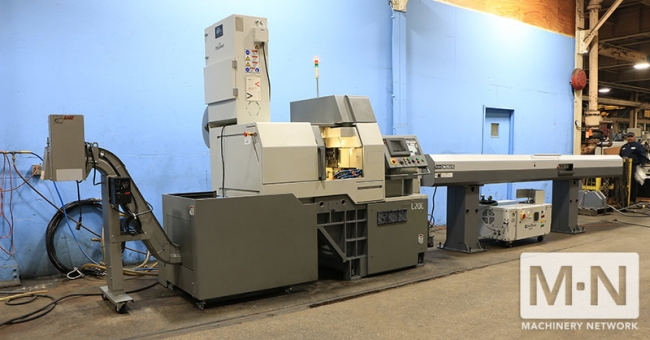

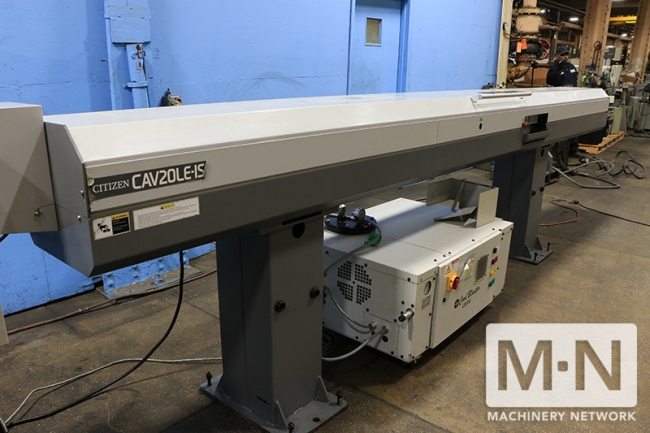

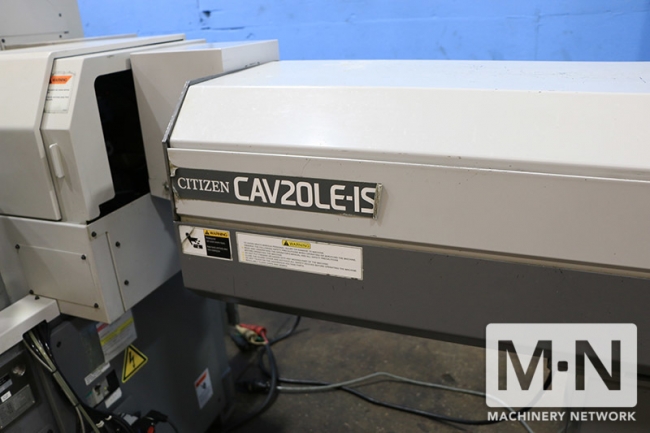

CITIZEN CAV20LE-IS MAGAZINE BAR LOADER

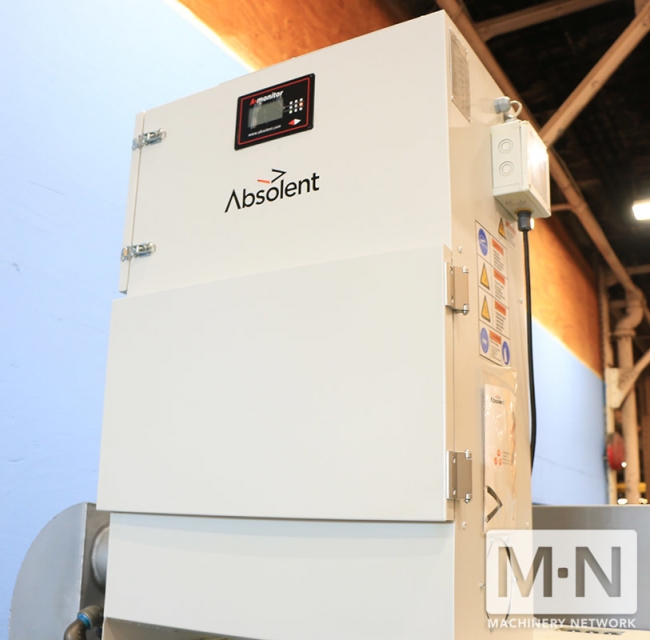

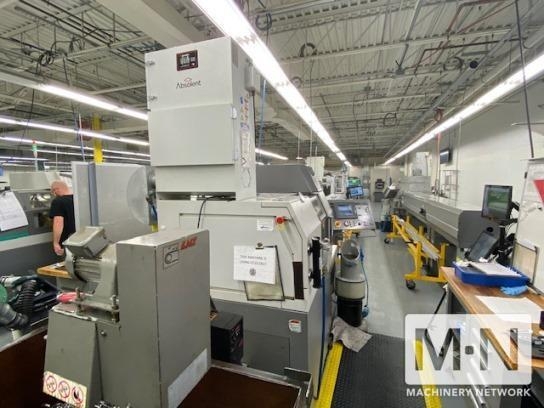

ABSOLENT MIST COLLECTION SYSTEM

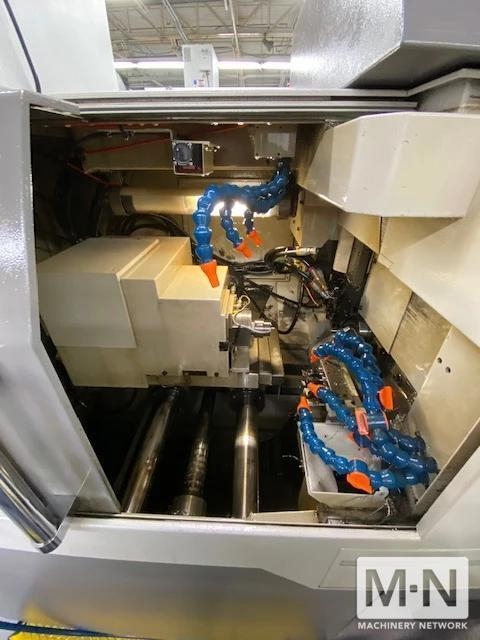

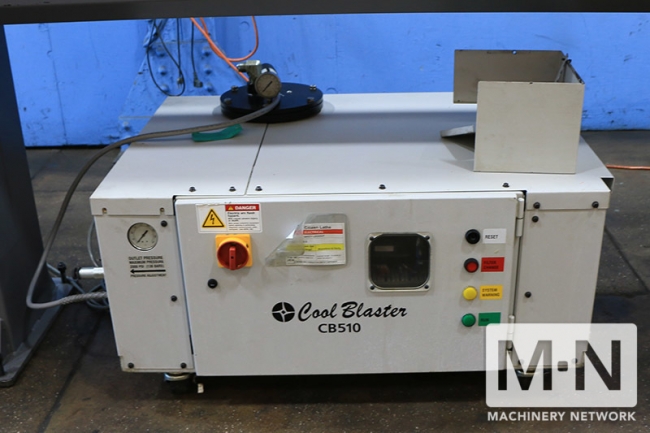

COOL BLASTER HIGH PRESSURE COOLANT

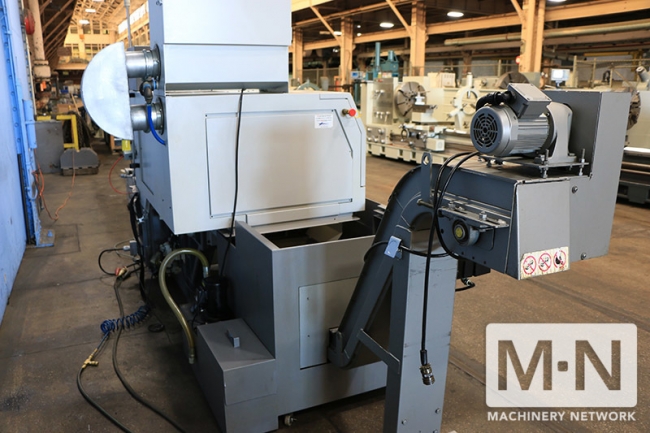

LNS CHIP CONVEYOR
FIRE SUPPRESSION SYSTEM DOES NOT INCLUDE TANK

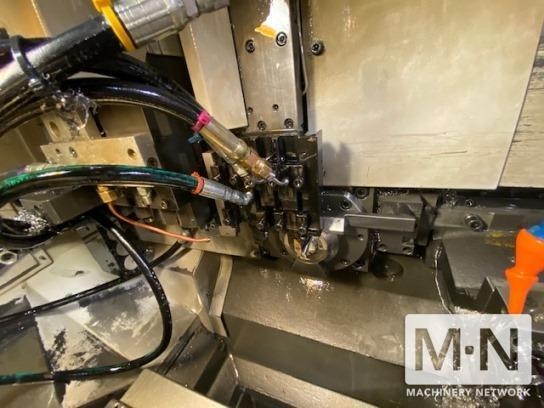

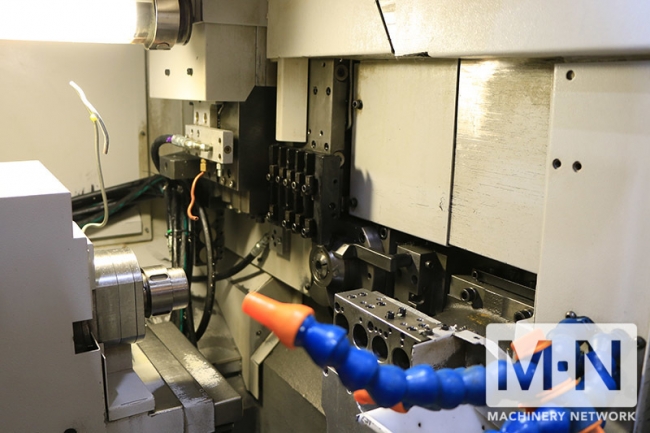

GSE-310 3-LIVE B-AXIS TOOL BLOCK
NEW 2010
SPECIFICATIONS:
MAX. MACHINING DIAMETER (D): 20 MM (3/4")
MAX. MACHINING LENGTH (L): 200 MM (8")
MAX. FRONT DRILLING DIAMETER: 10 MM (3/8")
MAX. FRONT TAPPING DIAMETER: M8
SPINDLE THROUGH-HOLE DIA: 24 MM
MAIN SPINDLE SPEED: 10,000 RPM
MAX. CHUCK DIA BACK SPINDLE: 20 MM (3/4")
BACK SPINDLE SPEED: 8,000 RPM
NUMBER OF TOOLS TO BE MOUNTED: MAX. 32
TURNING TOOLS ON GANG: 5
LIVE X-DRILL TOOL ON GANG TOOL: 4
LIVE SIDE/FRONT WORKING TOOL BLOCK:3
FRONT ID TOOL POST (STATIONARY): 3
LIVE TOOL - BACK TOOL POST: 4
SPINDLE DRIVE: 2.2 / 3.7 KW
INPUT POWER CAPACITY: 8 KVA
APPROX WEIGHT: 4840 LBS
EQUIPPED WITH:
CITIZEN CAV20LE-IS MAGAZINE BAR LOADER
ABSOLENT MIST COLLECTION SYSTEM
COOL BLASTER HIGH PRESSURE COOLANT
LNS CHIP CONVEYOR
FIRE SUPPRESSION SYSTEM DOES NOT INCLUDE TANK
GSE-310 3-LIVE B-AXIS TOOL BLOCK
