CONAIR CENTRAL DRYING SYSTEM

Type:

PLASTICS DRYER

Manufacturer:

CONAIR

Model:

CENTRAL DRYING SYSTEM

Condition:

Not Specified

Year:

2018

Stock #:

38677

Status:

Sold

Description:

CONAIR CENTRAL DRYING SYSTEM THAT HAS NEVER BEEN USED

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

CONAIR CENTRAL DRYING AND CONYEYANCE SYSTEM NEVER USED
** COST OVER $ 700,000 WHEN PURCHASED NEW **

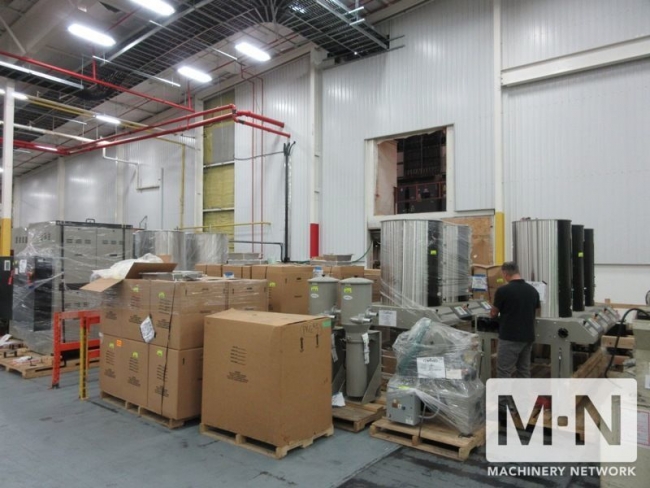

INCLUDES
W1000 DRYERS, FLX-128 PLUS CENTRAL CONVEYING CONTROL

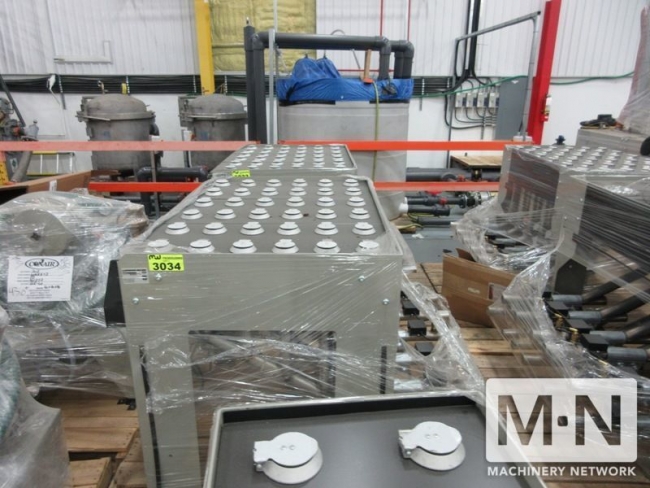

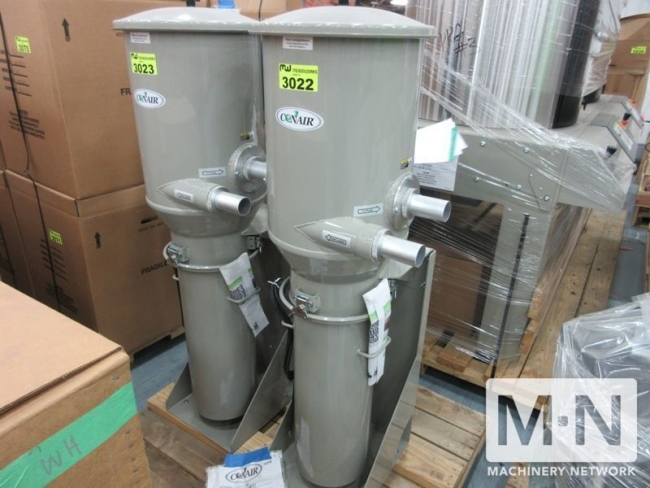

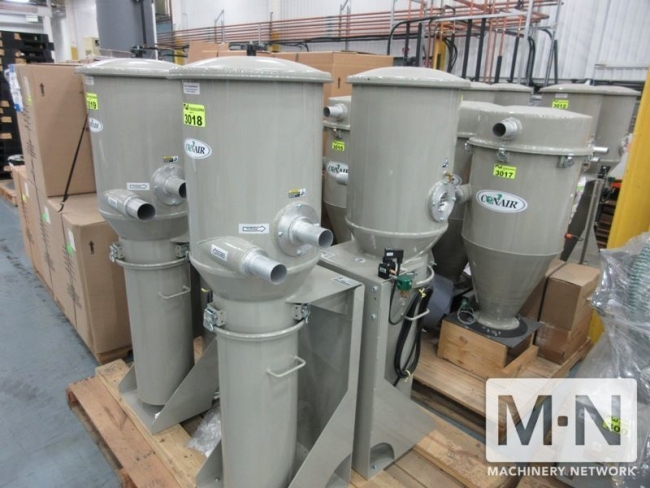

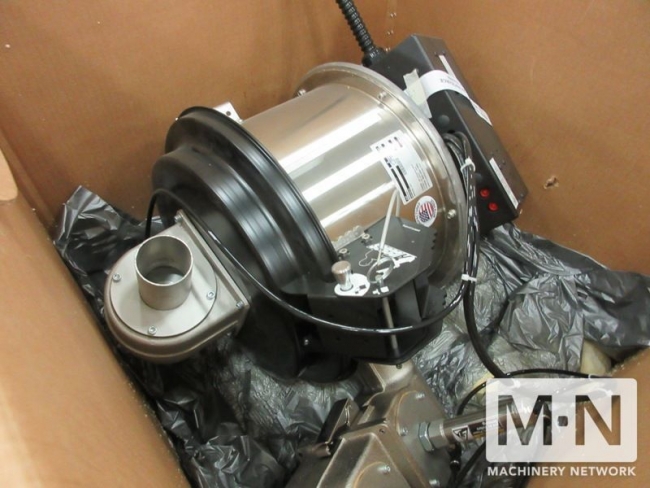

PUMPS ,RECEIVERS, FILL SENSORS,RATIO AND PURGE VALVES, VACUUM DUST COLLECTORS,

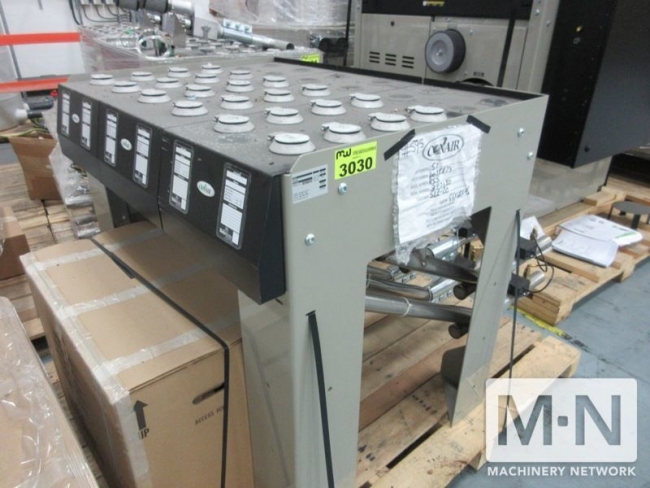

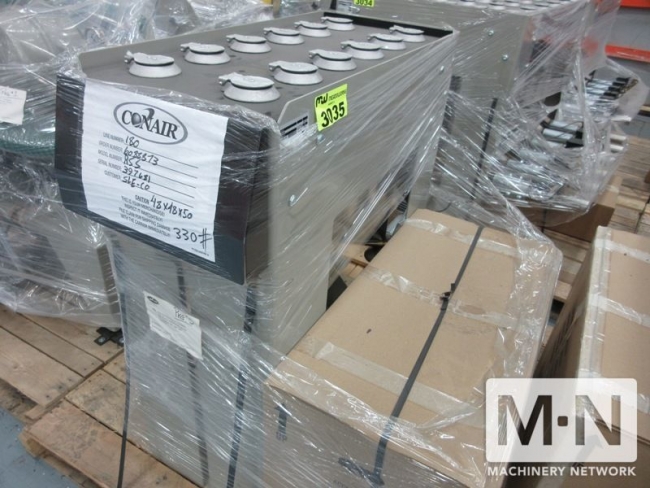

RESIN SELECTION STATIONS, CONSOLIDATED RESIN DRYING AND MORE

APPLICATION: To dry various, free-flowing, virgin pellets weighing approx. 35-40 lb/ft-at
a maximum total throughput of 1,400 lb/hr with a drying temperature range

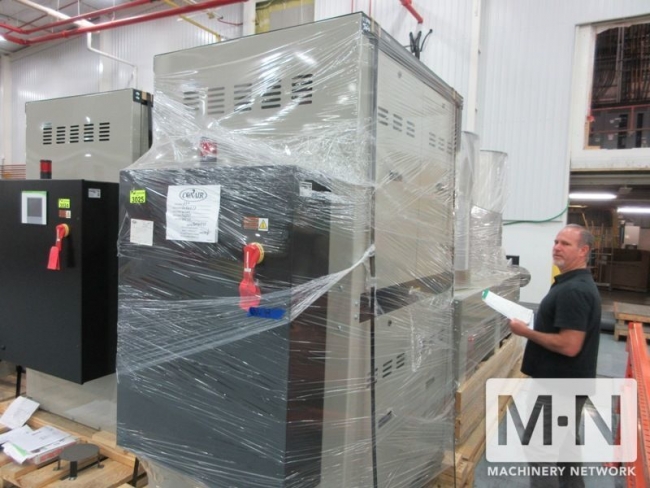

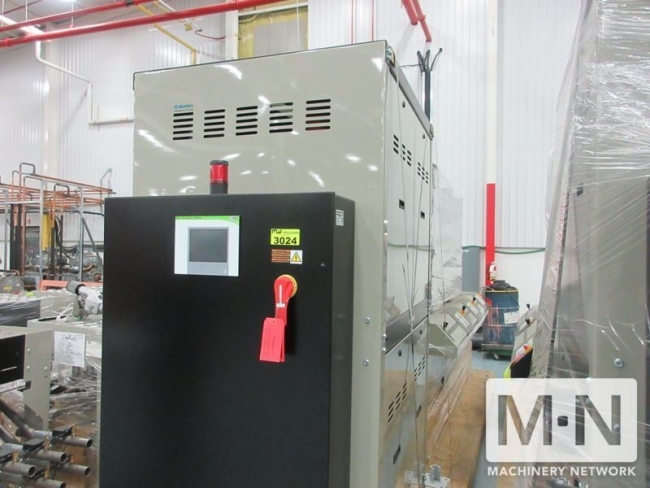

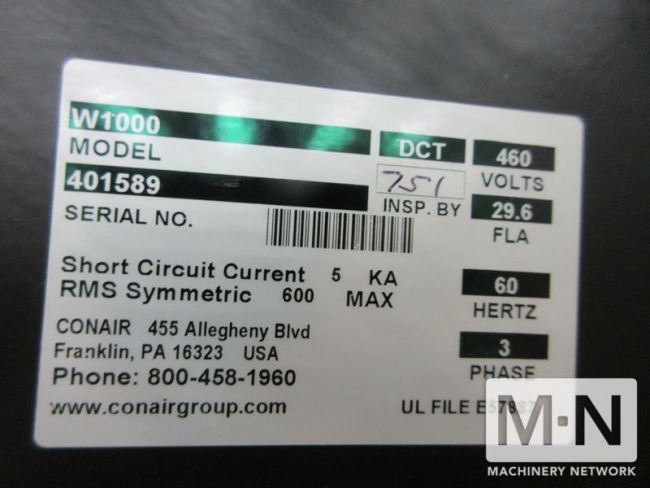

of 250 degrees F for 4 hours, utilizing (2) W1000 Carousel Plus series dehumidifying dryers in a
RWX style system with manifolds as described below

EQUIPPED WITH :

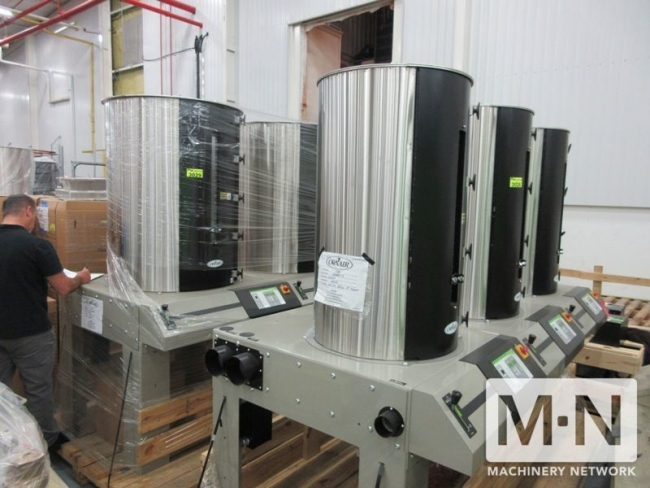

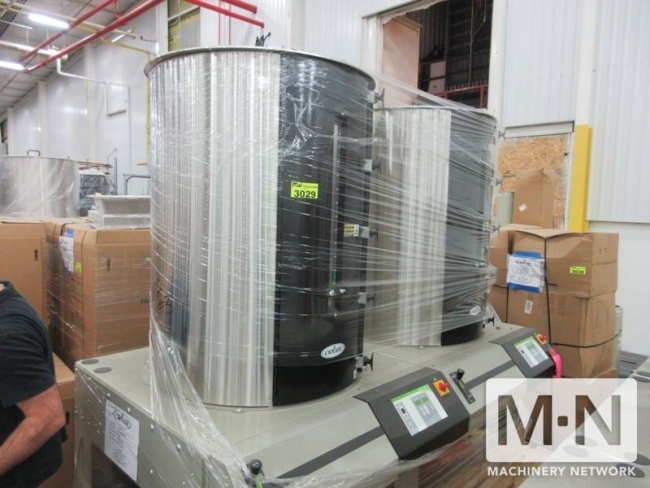

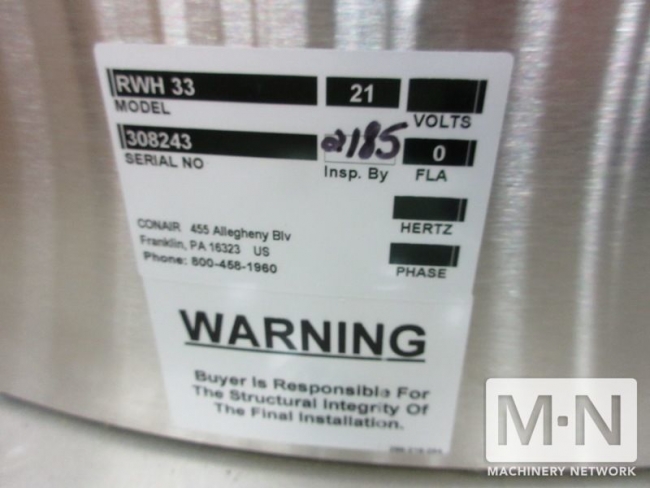

DRYER #1 -- Sled #1: (2) RWH33-21, 21 ft---- Drying hoppers for free-flowing,
virgin pellets with a drying exposure time of 4 hours at 250 degrees F,
at a maximum throughput of 180 lb/hr each
-- Sled #2: (1) RWH33-21, 21 ft---- Drying hoppers for free-flowing,
virgin pellets with a drying exposure time of 4 hours at 250 degrees F,

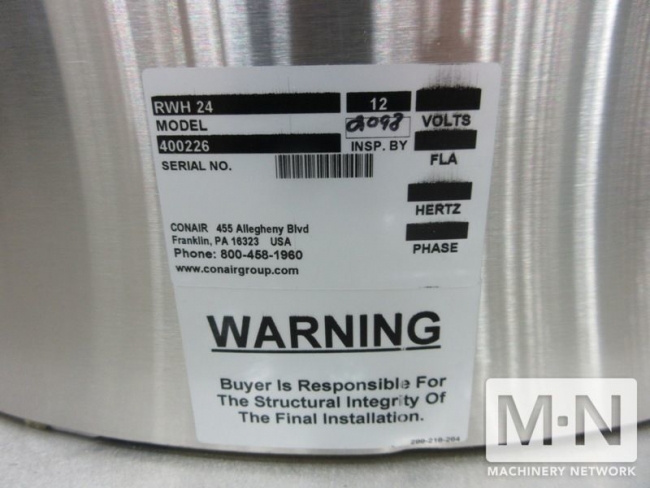

at a maximum throughput of 180 lb/hr each. (2) RWH24-12, 12 ft-
Drying hoppers for free-flowing, virgin pellets with a
drying exposure time of 4 hours at 250 degrees F, at a maximum throughput of 100 lb/hr each
DRYER #2 -- Sled #1: (2) RWH33-21, 21 ft---- Drying hoppers for free-flowing,
virgin pellets with a drying exposure time of 4 hours at 250 degrees F,
at a maximum throughput of 180 lb/hr each
-- Sled #2: (3) RWH24-12, 12 ft---- Drying hoppers for free-flowing, virgin pellets with a
drying exposure time of 4 hours at 250 degrees F,
at a maximum throughput of 100 lb/hr each.

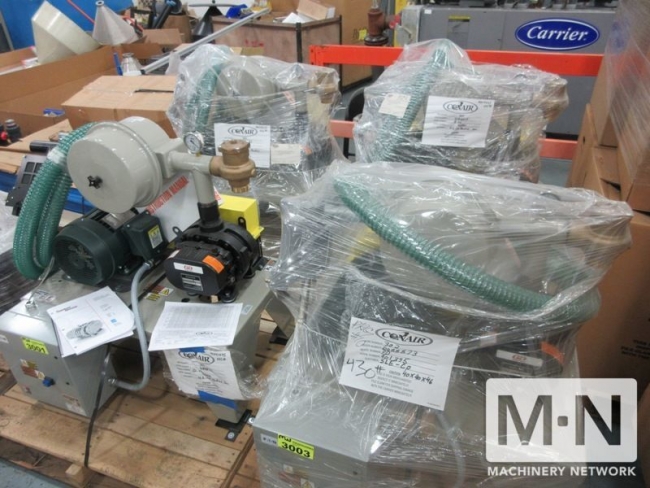

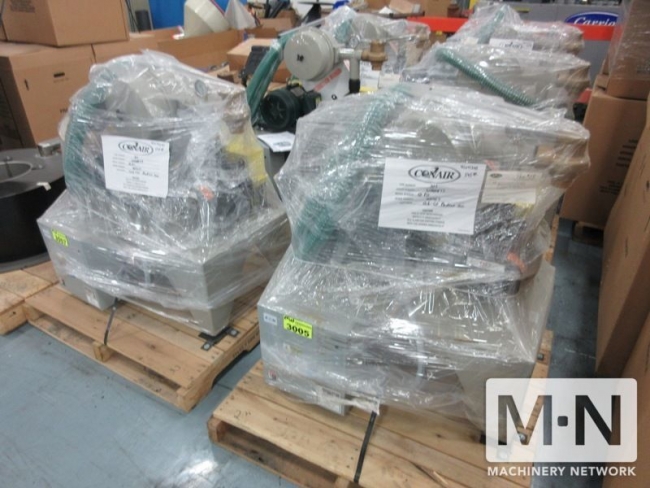

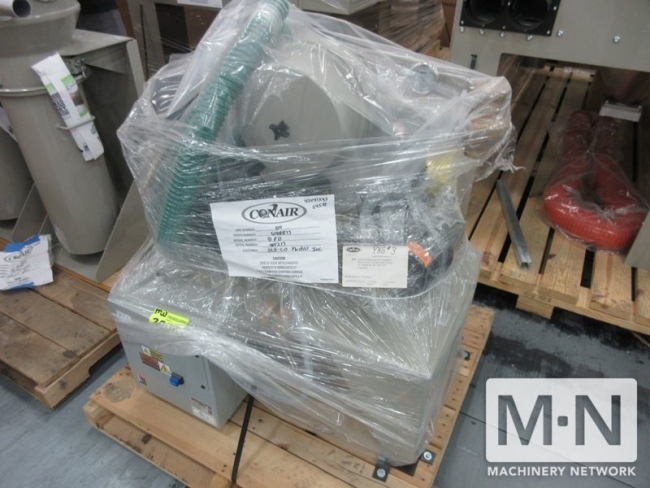

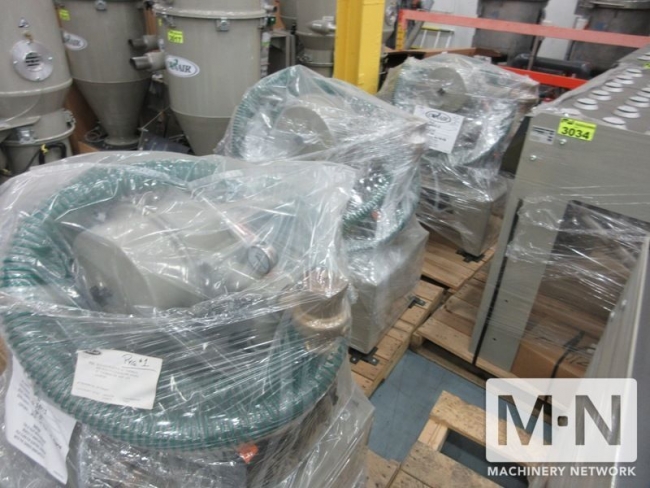

APPLICATION: Pump#1 New PD7.5: To convey free-flowing, non-abrasive, virgin pellets
weighing approx. 35-40 lb/ft---from (3) existing outdoor silos to
(3) existing in-plant surge bins. System has a maximum total throughput of 2,850 lb/hr
and utilizes (1) new Conair 7.5 hp positive displacement vacuum pump.
Material Line Components: 2.50" O.D.; Aluminum tubing; Stainless Steel bends.
Vacuum Line Components: 2.50" O.D.; Aluminum tubing; Aluminum bends.
Maximum Conveying Parameters: 185' Horizontal; 25' Vertical;
(6) 90 degree elbows; 10' flexible hose. Maximum Vacuum Distance: 50' Horizontal
APPLICATION: Pump#2 New PD5: To convey free-flowing, non-abrasive,
virgin pellets weighing approx. 35-40 lb/ft---- from
(3) existing in-plant surge bins to (10) new RWH drying hoppers via a common line system.
System has a maximum total throughput of 1,400 lb/hr and utilizes
(1) new Conair 5 hp positive displacement vacuum pump.
Pump#3 New PD5: To convey free-flowing, non-abrasive, virgin pellets weighing approx.
35-40 lb/ft---- from (3) existing in-plant surge bins to
(10) existing drying hoppers via a common line system.
System has a maximum total throughput of 1,400 lb/hr and utilizes
(1) new Conair 5 hp positive displacement vacuum pump.
Material Line Components: 2.00" O.D.; Aluminum tubing; Stainless Steel bends.
Vacuum Line Components: 2.00" O.D.; Aluminum tubing; Aluminum bends.
Maximum Conveying Parameters: 100' Horizontal; 25' Vertical; (6) 90 degree elbows;
10' flexible hose. Maximum Vacuum Distance: 50' Horizontal
