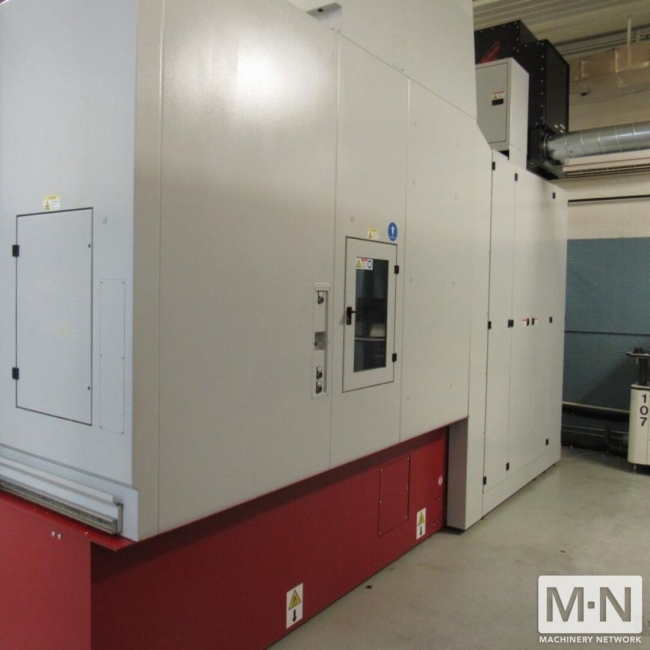

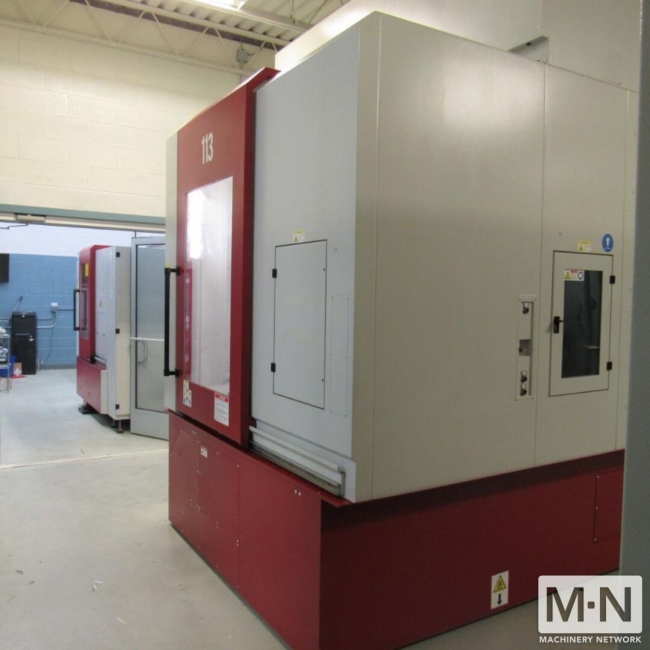

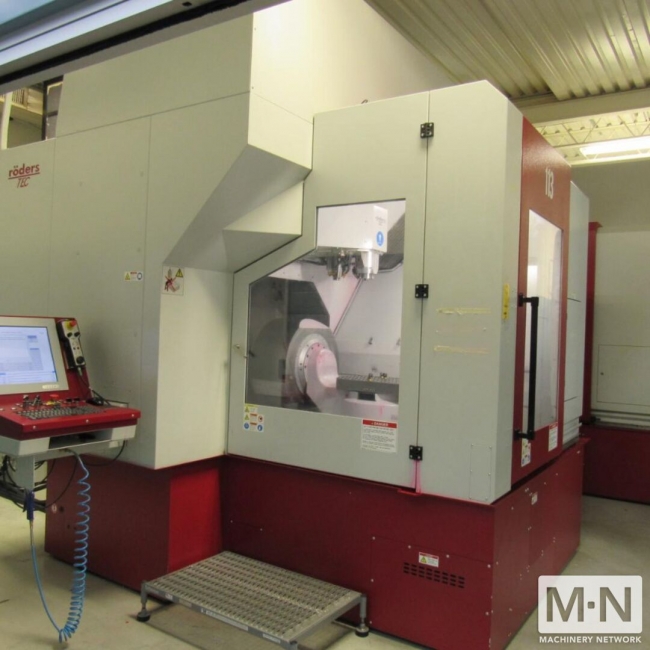

Roeders RXU1001DSHZ2 Dual Spindle 5-Axis CNC Vertical Machining Center, 2018
Type:
Vertical Machining Centers (5-Axis or More)
Manufacturer:
ROEDERS
Model:
RXU1001DSHZ2
Condition:
Not Specified
Year:
2018
Stock #:
42076
Status:
For Sale
Description:
Perfect for Optical Machining
Videos:
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
X-Axis
Y-Axis
Z-Axis
W-Axis
Spindle Motor
Spindle Speed
Table Size

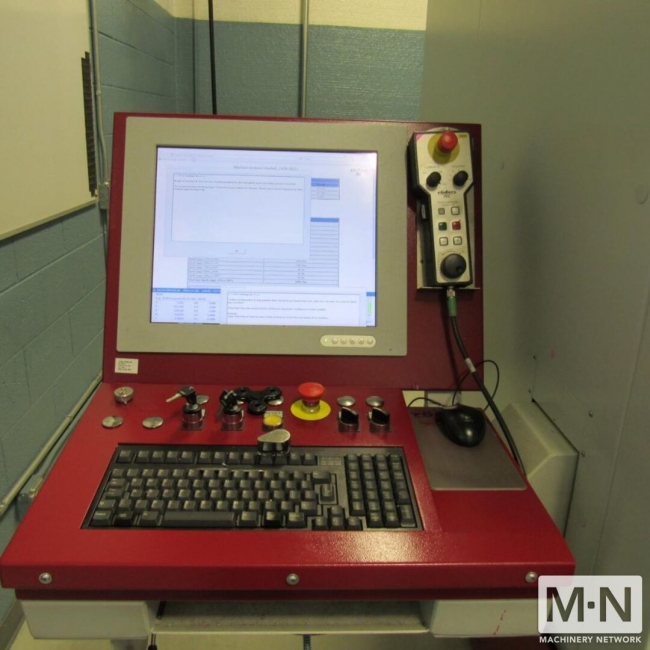

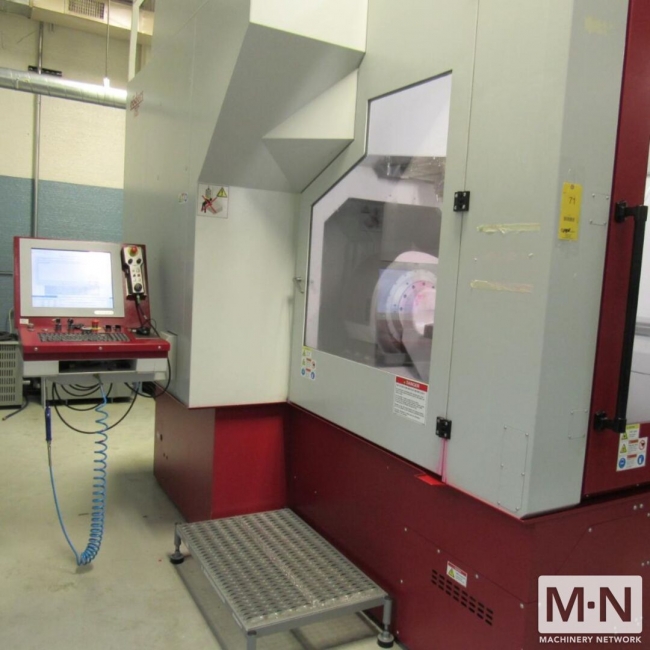

Roeders HMC RMS6 Control

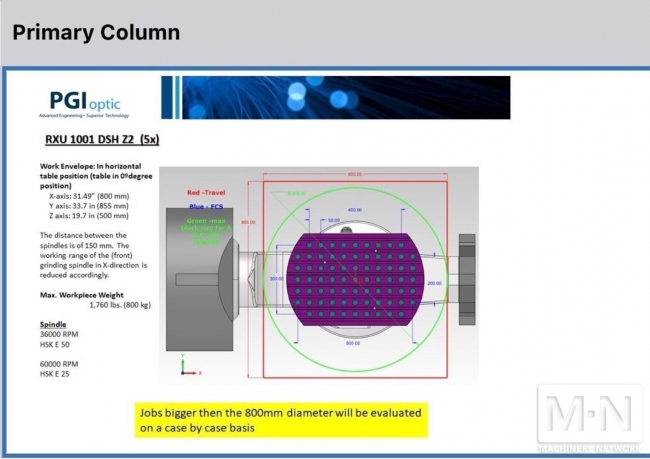

RXU1001DSH 400 System FCS

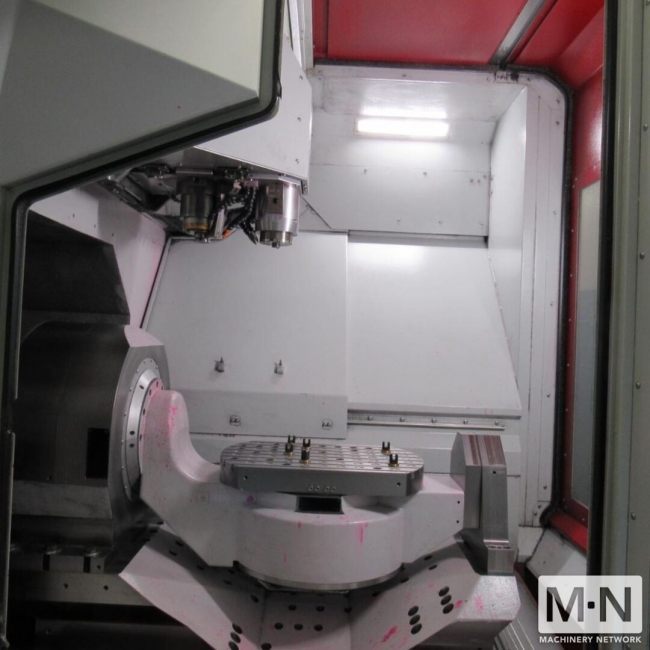

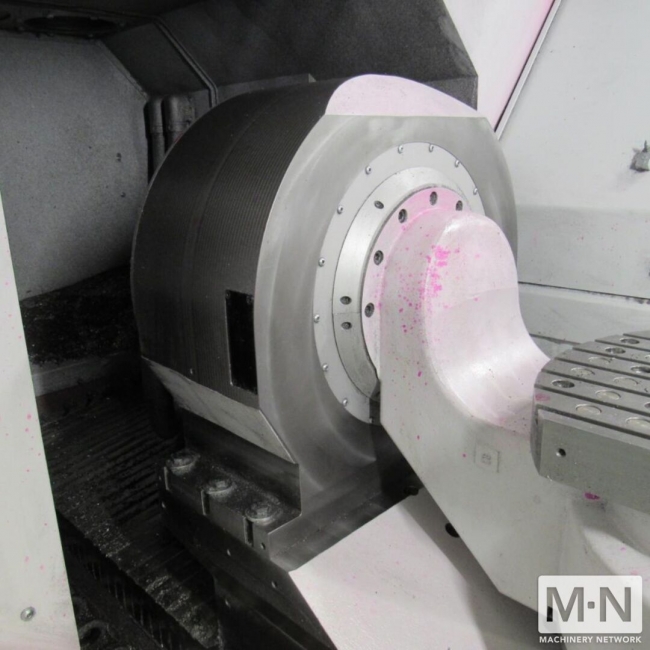

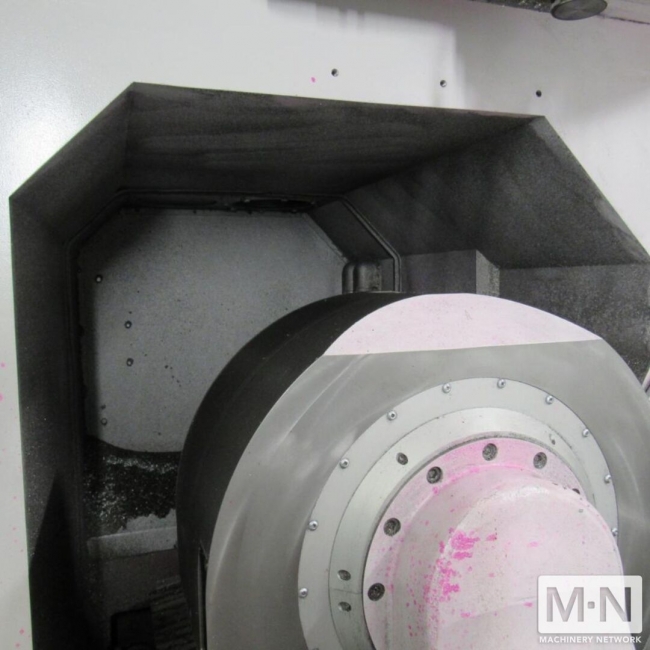

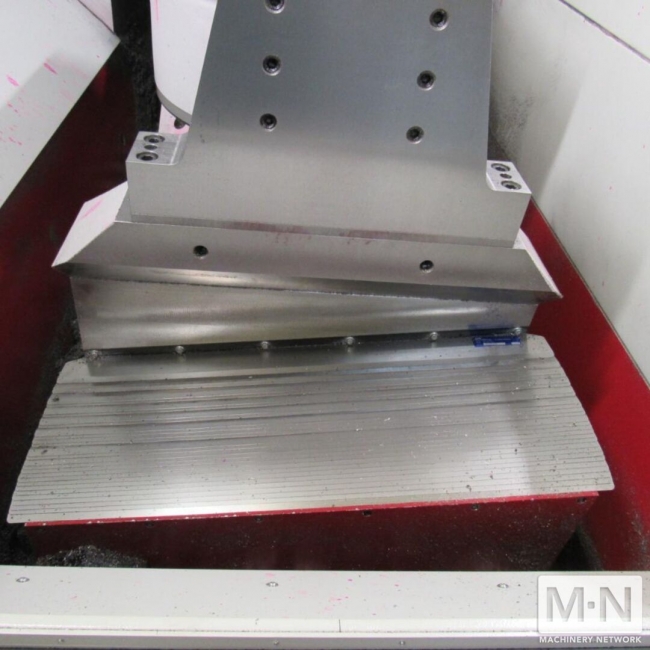

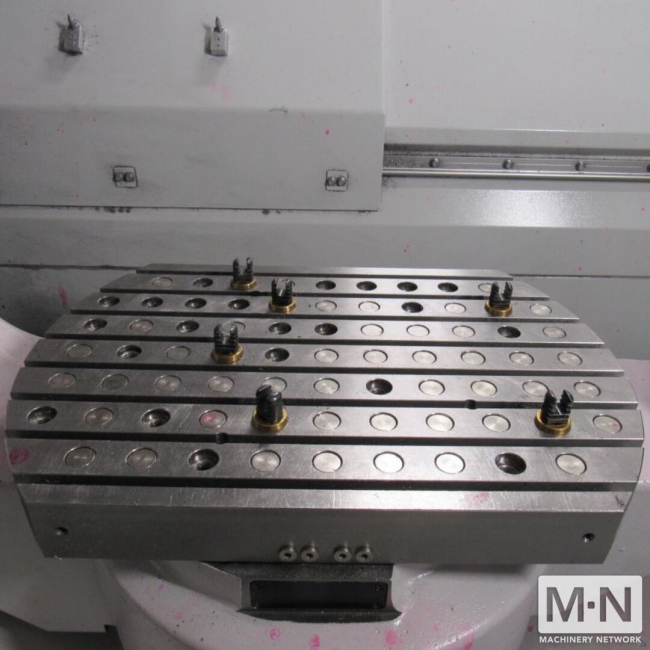

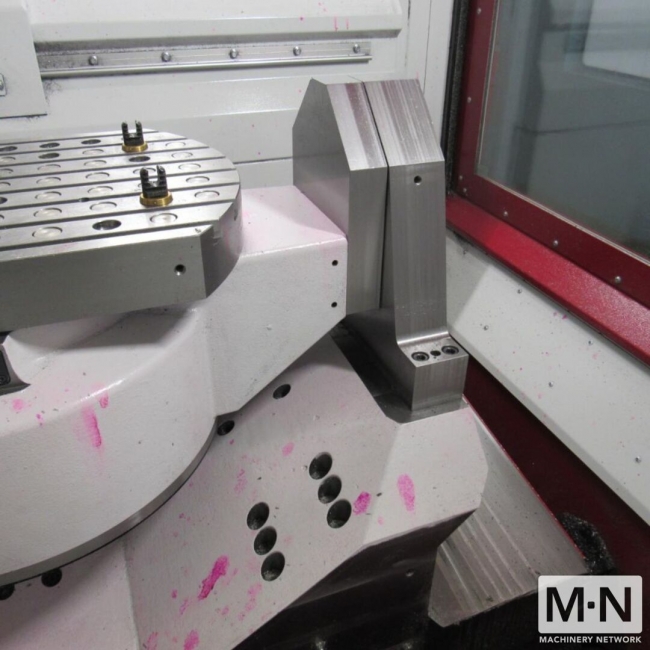

- C-Axis Table
- T-Slots 0.39", Distance 1.97"
- Hole Pattern: M16 in a grid 1.97"

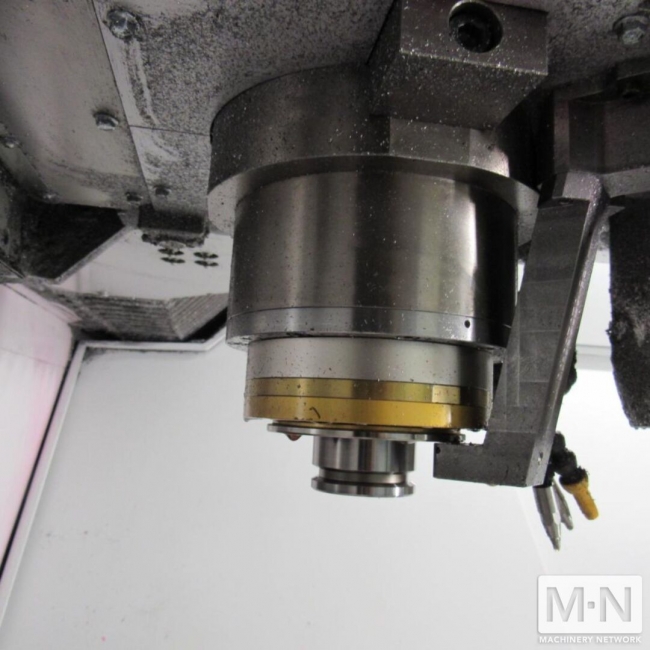

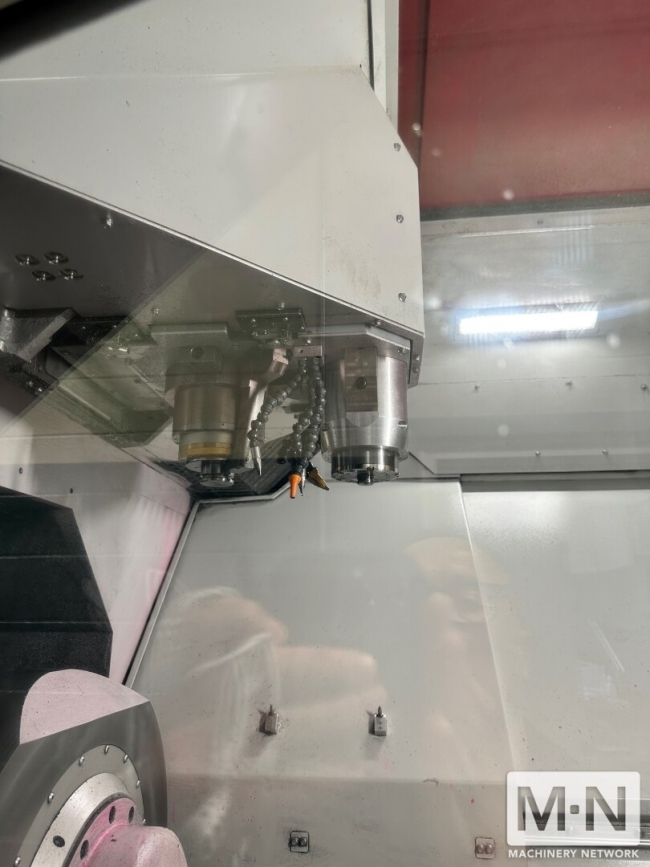

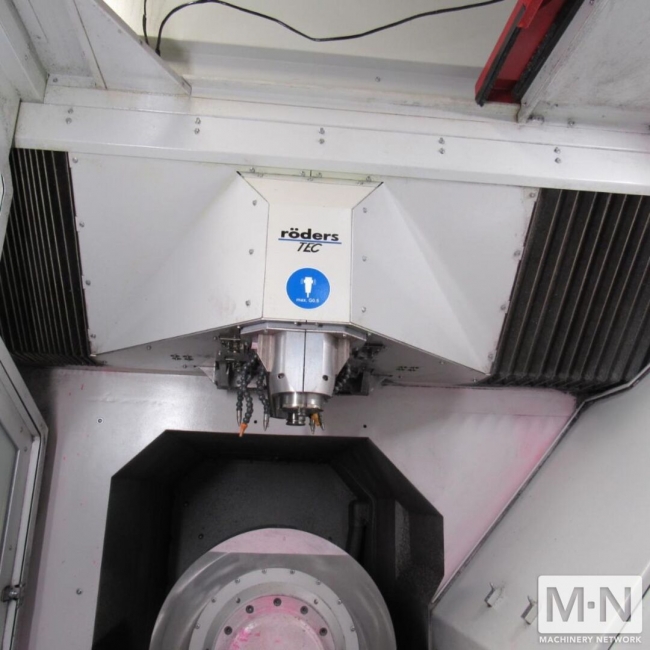

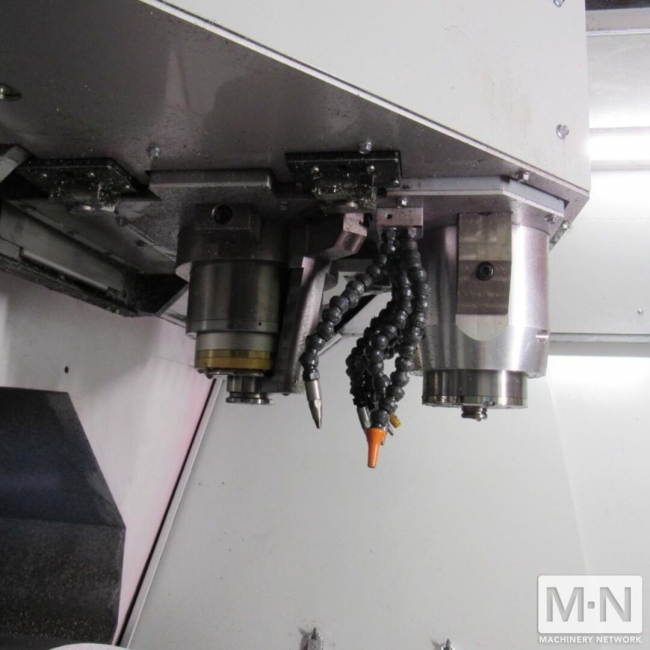

Spindle #1: Fischer HSK50 w/ 36k Rpm
- High Frequency Spindle
- Vector-Controlled
- Max. Diameter 0.79"
- FISCHER MFW1412/36, 100-36.000 1/min, 15 kW (S1)
- HSK-E50 tool interface

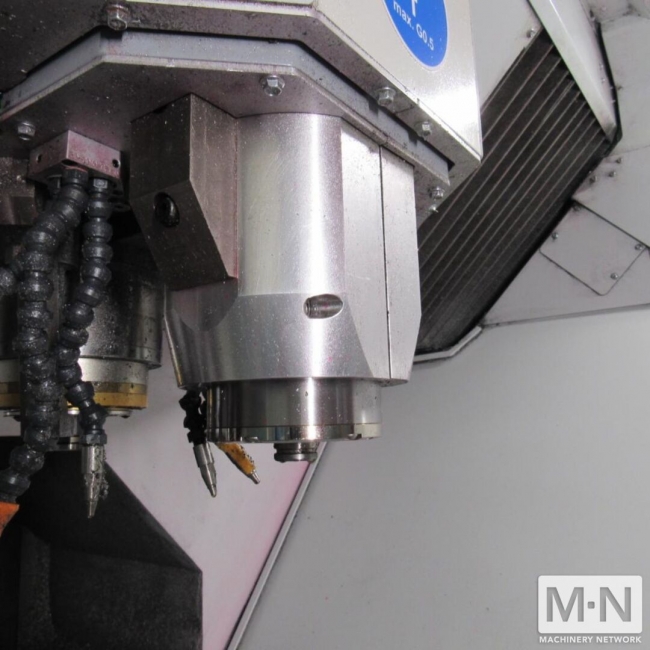

Spindle #2: Levicron RSA60 HSK25
- Optimized for High Precision Machining and Highest Surface Qualities
- Runout < 0,1 μm, 0-60.000 1/min
- Vector-Controlled
- Torque 0,5 Nm (S1) HSK-E25 Interface for ATC
Tool Laser Measuring Capabilities
Spindle Compensation - Live Spindle Growth Monitoring
High Accuracy Package
27.55" Continuous 5th Axis
Lift up Z-Axis

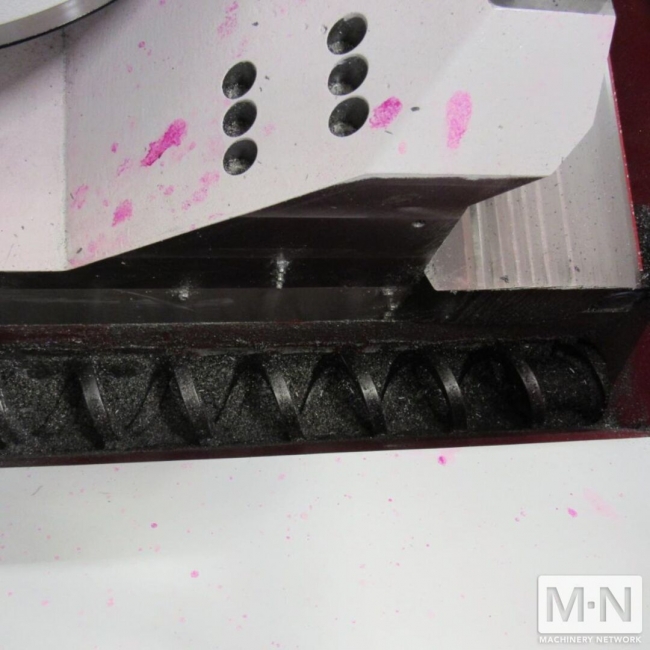

Chip Removal Bin
Remote Control

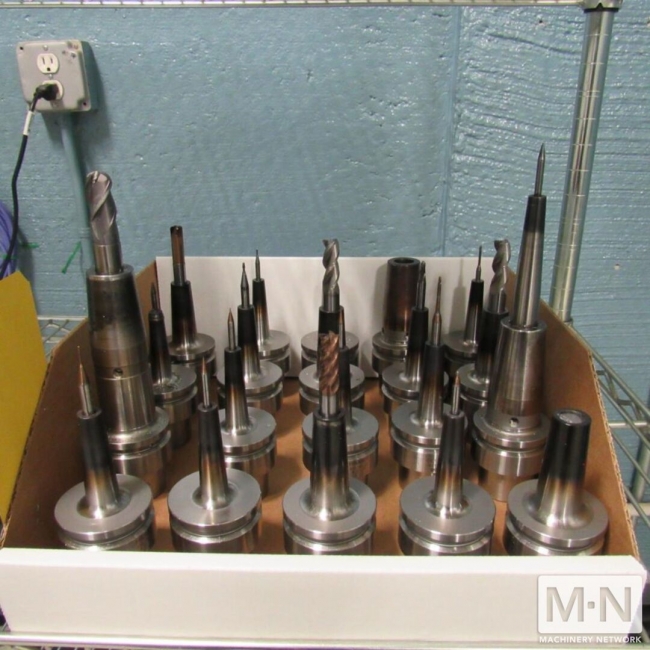

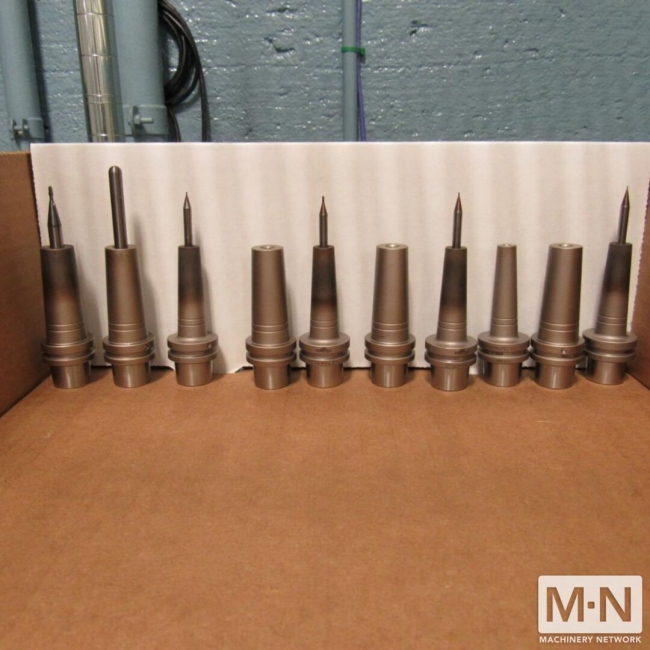

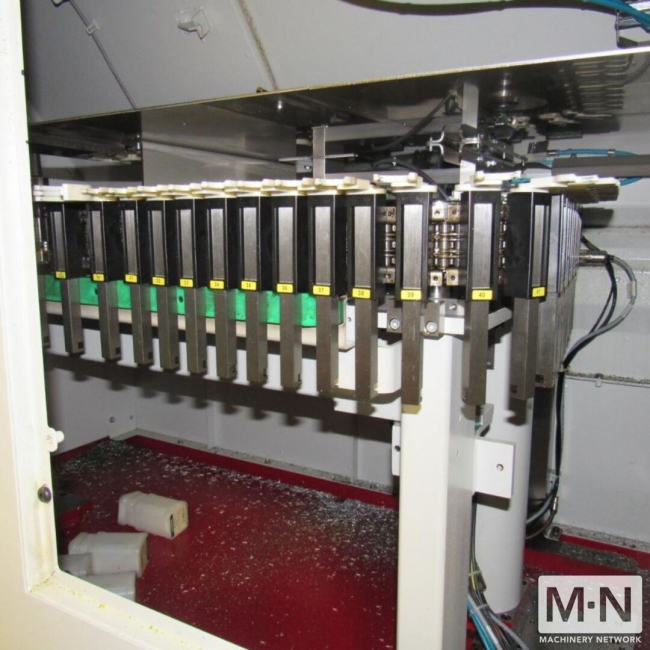

HSK E50 & E25 Tooling

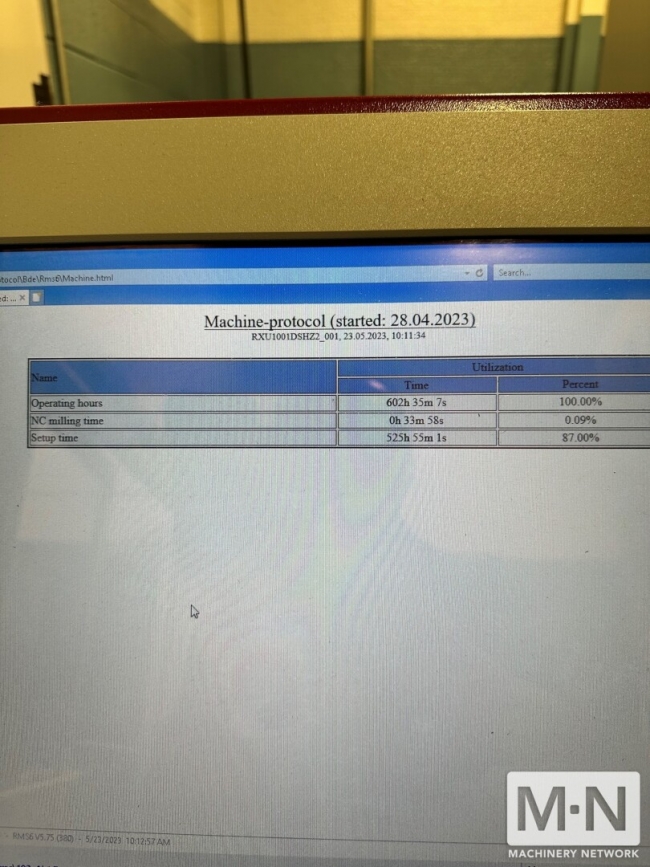

33 Minutes NC Milling
*$850K Replacement*
